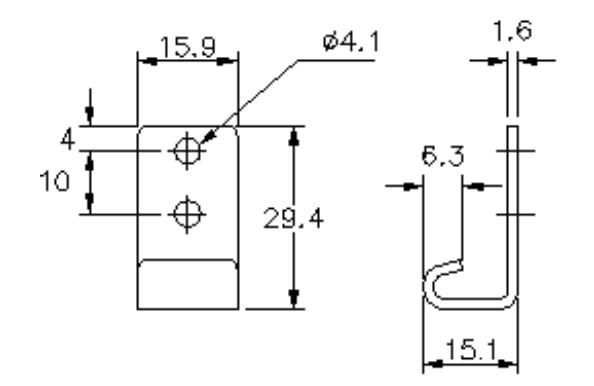

Catch plate, electro zinc plated steel, flat mounting, L=29,4mm, B=15,9mm, H=15,1mm
MT100331
Catch plate manufactured in steel with an electro zinc plated surface. The length is 29,4mm, the width is 15,9mm and the height is 15,1mm. The catch palte has a hole diameter of 4,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Steel
Mounting type
Flat mounting
Surface finish
Electro zinc plated
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
150
Hole diameter in mm
4.1
Height in mm
15.1
Length in mm
29.4
Long description
Catch plate manufactured in steel with an electro zinc plated surface. The length is 29,4mm, the width is 15,9mm and the height is 15,1mm. The catch palte has a hole diameter of 4,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
