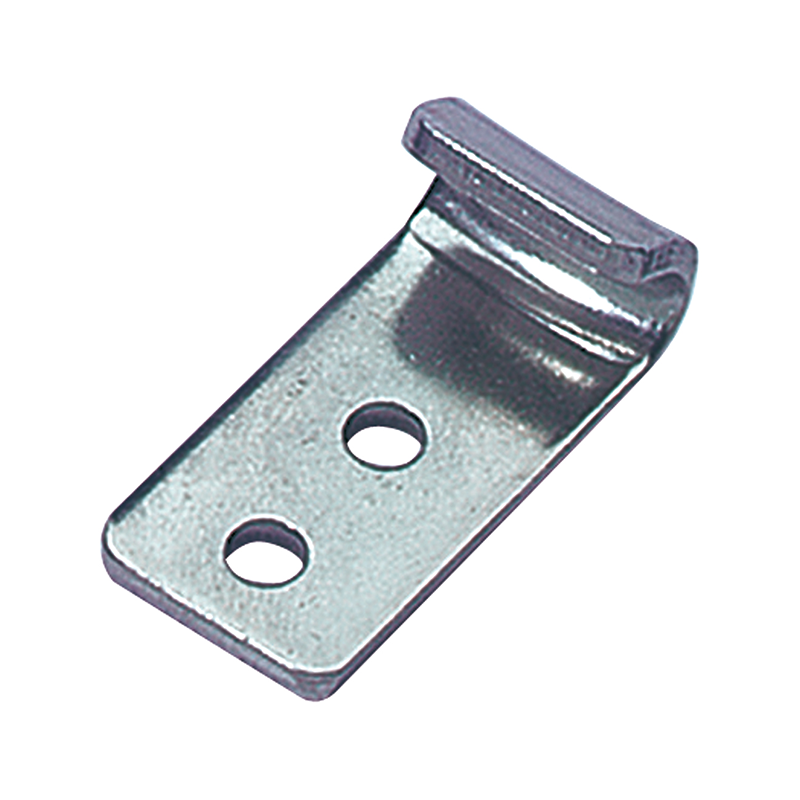

Catch plate, electro zinc plated steel, flat mounting, L=37mm, B=16mm, H=11mm
MT100129

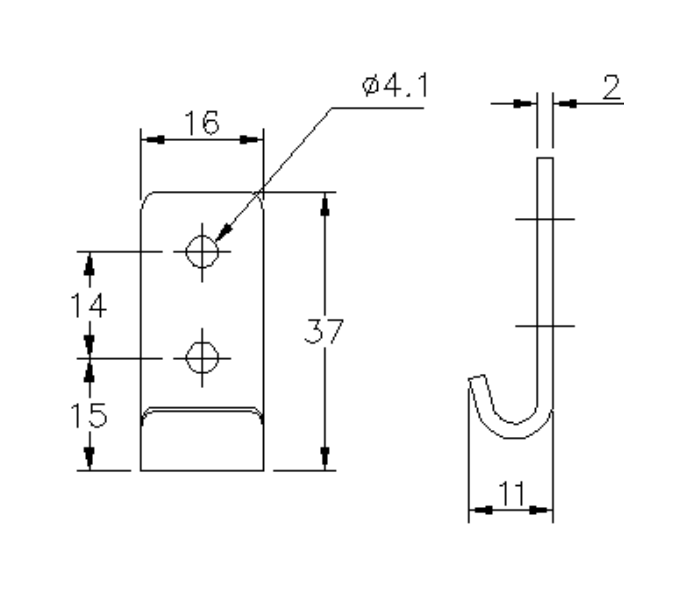

Catch plate manufactured in steel with an electro zinc plated surface. The length is 37mm, the width is 16mm and the height is 11mm. The catch palte has a hole diameter of 4,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Steel
Mounting type
Flat mounting
Surface finish
Electro zinc plated
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
200
Hole diameter in mm
4.1
Height in mm
11
Length in mm
37
Long description
Catch plate manufactured in steel with an electro zinc plated surface. The length is 37mm, the width is 16mm and the height is 11mm. The catch palte has a hole diameter of 4,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
