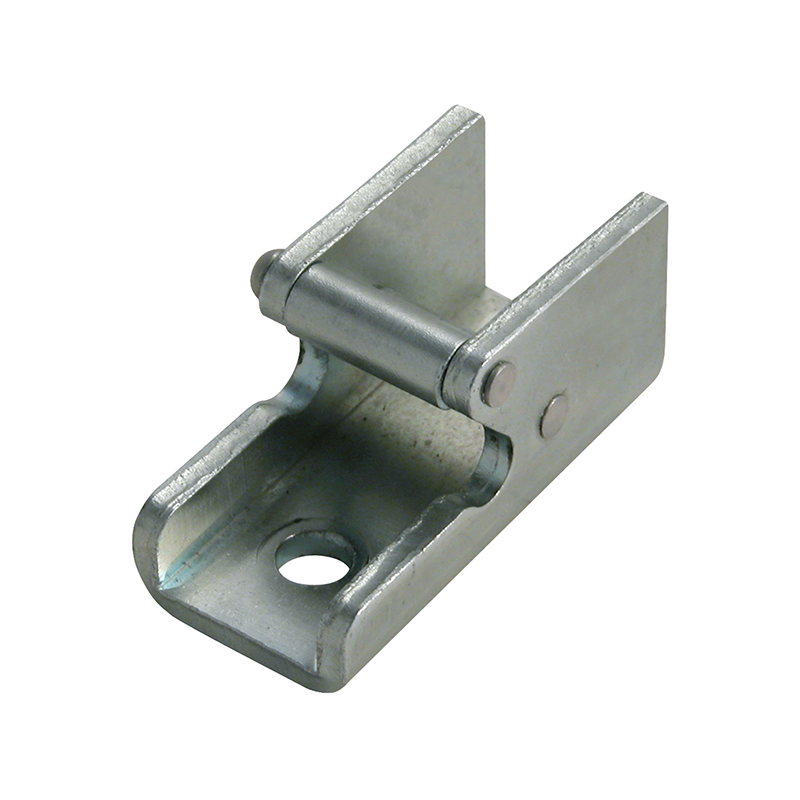

Catch plate, electro zinc plated steel, flat mounting, L=75mm, B=36mm, H=37,8mm
MT100287

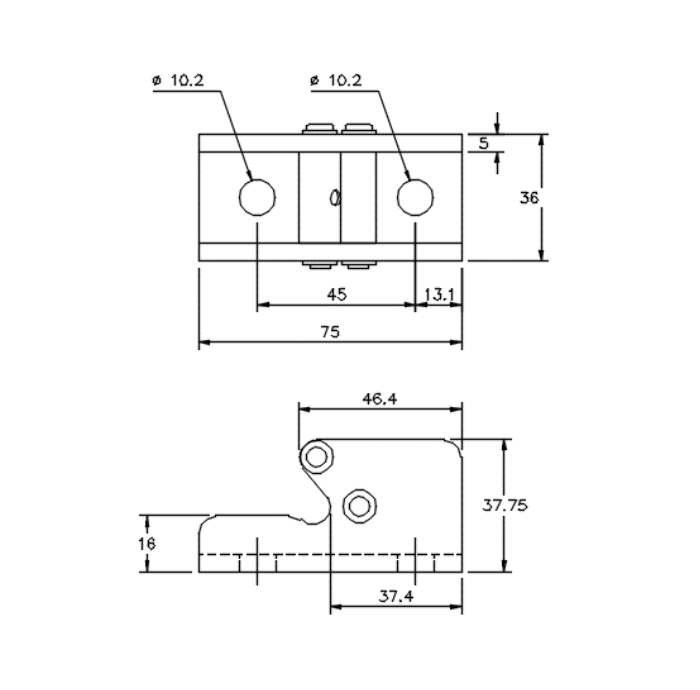

Catch plate manufactured in steel with an electro zinc plated surface. The length is 75mm, the width is 36mm and the height is 37,8mm. The catch palte has a hole diameter of 10,2 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Steel
Mounting type
Flat mounting
Surface finish
Electro zinc plated
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
7000
Hole diameter in mm
10.2
Height in mm
37.8
Length in mm
75
Long description
Catch plate manufactured in steel with an electro zinc plated surface. The length is 75mm, the width is 36mm and the height is 37,8mm. The catch palte has a hole diameter of 10,2 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
