Catch plate, electrophoretic black paint steel, angle mounting, L=29,4mm, B=15,9mm, H=10,3mm
MT100230

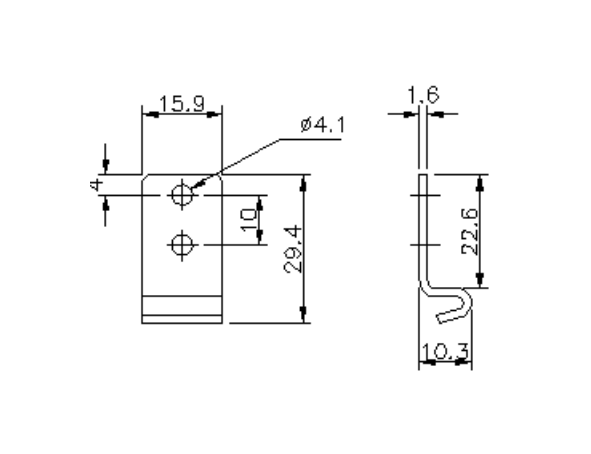

Catch plate manufactured in steel with an electrophoretic black paint surface. The length is 29,4mm, the width is 15,9mm and the height is 10,3mm. The catch palte has a hole diameter of 4,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Steel
Mounting type
Angle mounting
Surface finish
Electrophoretic black paint
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
150
Hole diameter in mm
4.1
Height in mm
10.3
Length i mm
29.4
Long description
Catch plate manufactured in steel with an electrophoretic black paint surface. The length is 29,4mm, the width is 15,9mm and the height is 10,3mm. The catch palte has a hole diameter of 4,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
