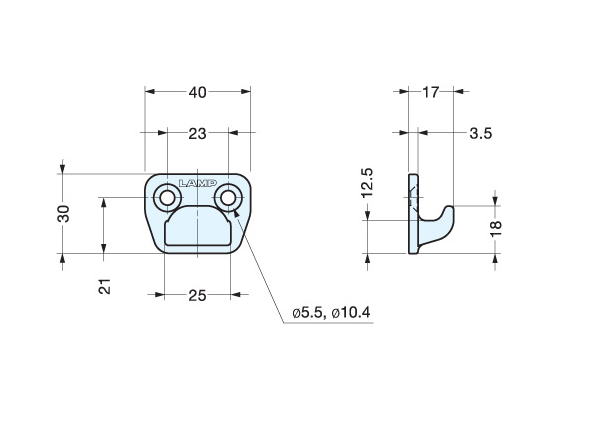

Catch plate, polished acid proof stainless steel, flat mounting, L=30mm, B=40mm, H=17mm
MT111023
Catch plate manufactured in acid proof stainless steel with an polished surface. The length is 30mm, the width is 40mm and the height is 17mm. The catch palte has a hole diameter of 5,5 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material
AISI 316
Material type
Acid proof Stainless Steel
Mounting type
Flat mounting
Surface finish
Polished
Breakage load (Ultimate stress) in kg
0
Hole diameter in mm
5.5
Height in mm
17
Length in mm
30
Long description
Catch plate manufactured in acid proof stainless steel with an polished surface. The length is 30mm, the width is 40mm and the height is 17mm. The catch palte has a hole diameter of 5,5 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
