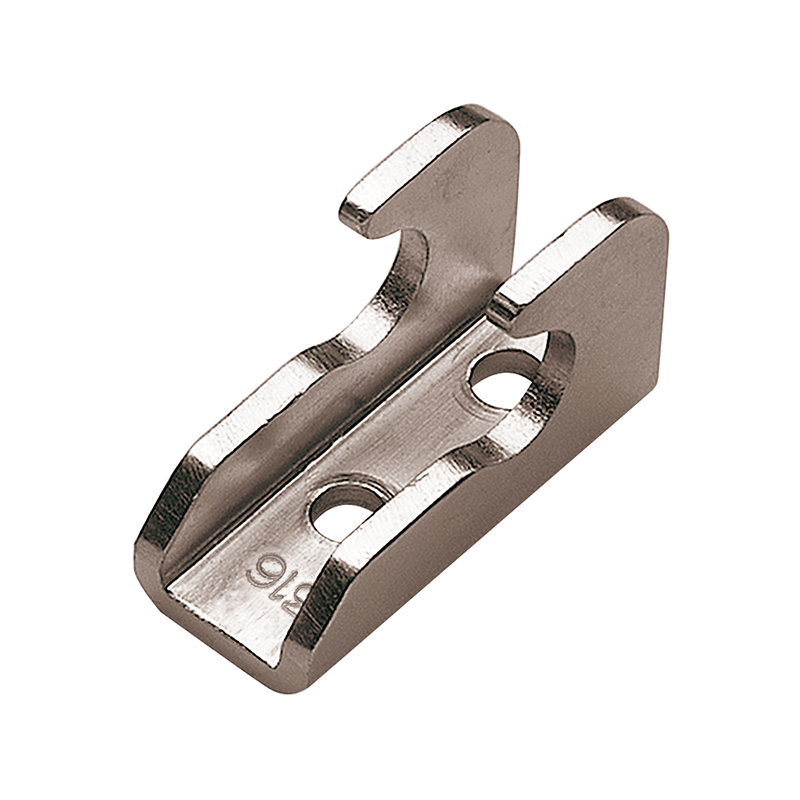

Catch plate, ubehandlet acid proof stainless steel, flat mounting, L=56,3mm, B=24,4mm, H=35mm
MT100272

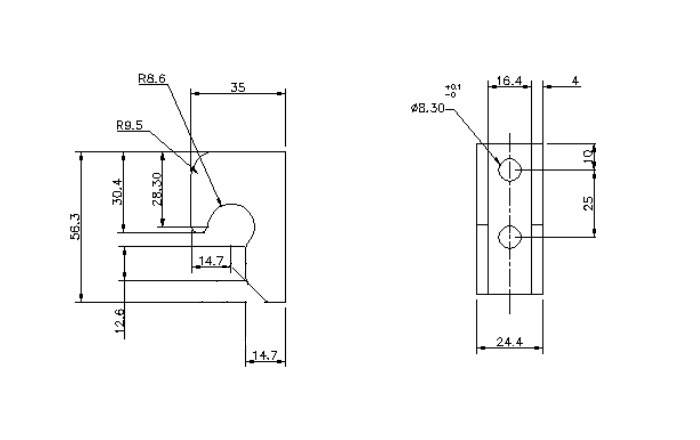

Catch plate manufactured in acid proof stainless steel with an untreated surface. The length is 56,3mm, the width is 24,4mm and the height is 35mm. The catch palte has a hole diameter of 8,3 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material
AISI 316
Material type
Acid proof Stainless Steel
Mounting type
Flat mounting
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
2500
Hole diameter in mm
8.3
Height in mm
35
Length i mm
56.3
Long description
Catch plate manufactured in acid proof stainless steel with an untreated surface. The length is 56,3mm, the width is 24,4mm and the height is 35mm. The catch palte has a hole diameter of 8,3 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
