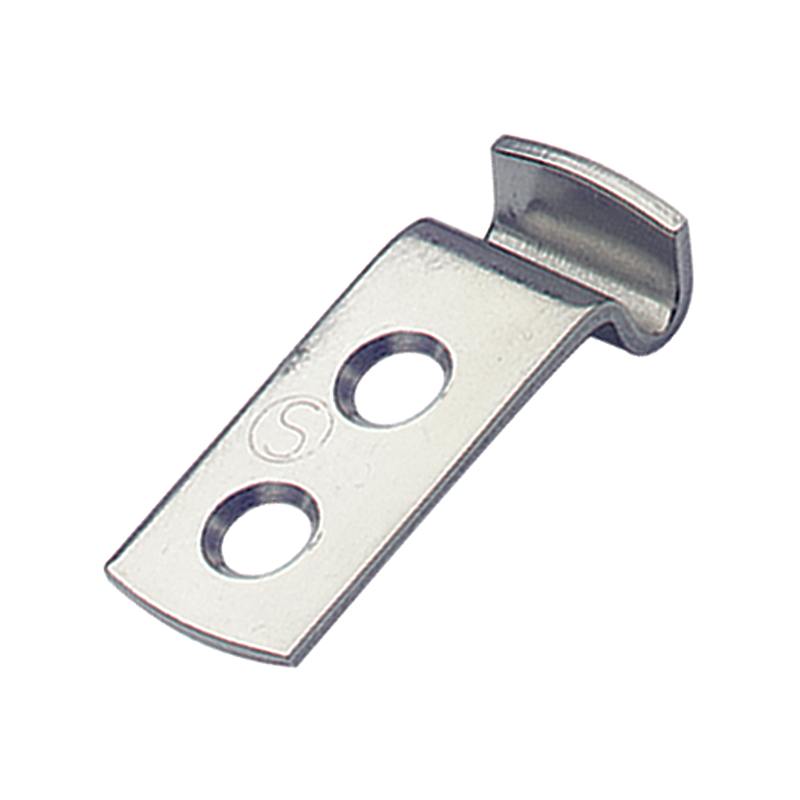

Catch plate, ubehandlet stainless steel, angle mounting, L=23,9mm, B=9,5mm, H=4,8mm
MT100221

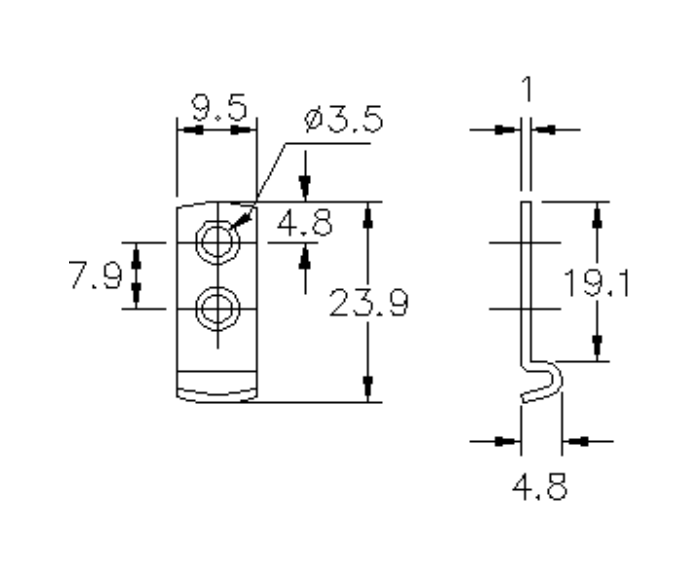

Catch plate manufactured in stainless steel with an untreated surface. The length is 23,9mm, the width is 9,5mm and the height is 4,8mm. The catch palte has a hole diameter of 3,5 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Stainless steel
Mounting type
Angle mounting
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
100
Hole diameter in mm
3.5
Height in mm
4.8
Length in mm
23.9
Long description
Catch plate manufactured in stainless steel with an untreated surface. The length is 23,9mm, the width is 9,5mm and the height is 4,8mm. The catch palte has a hole diameter of 3,5 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
