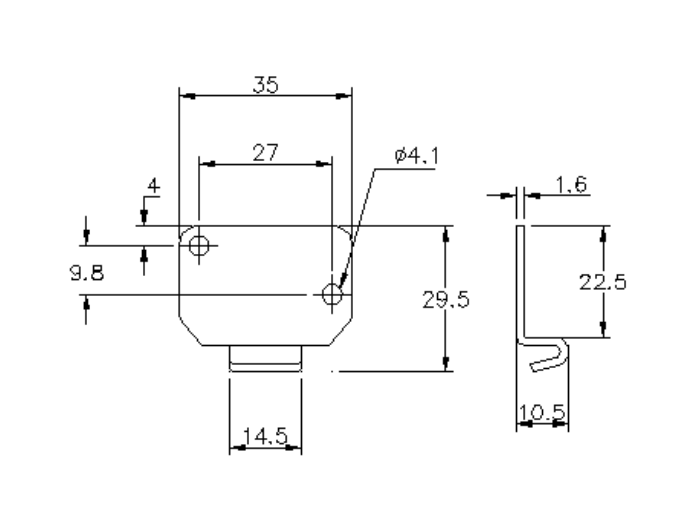

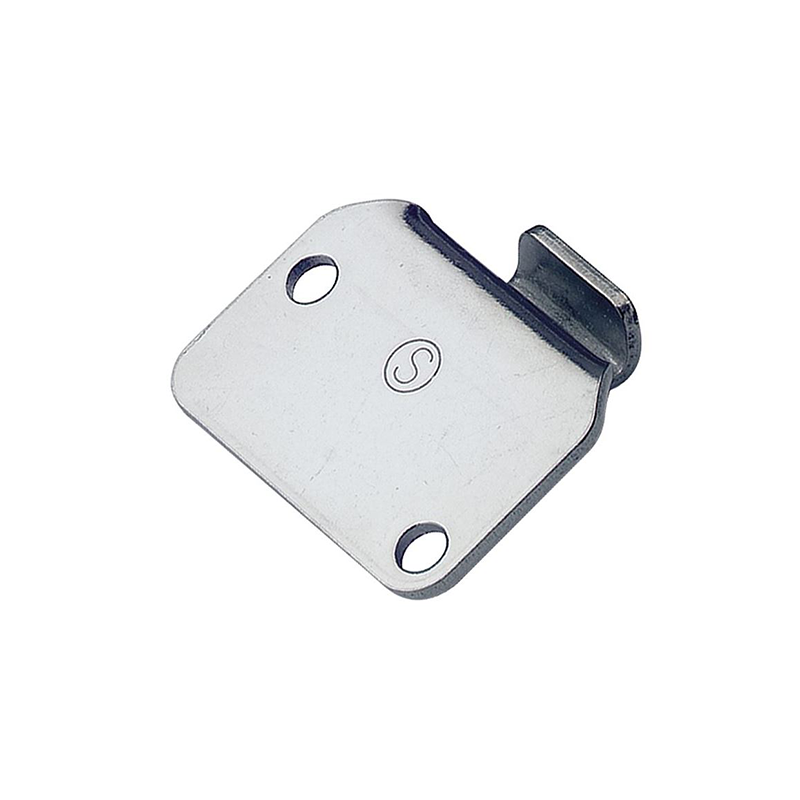

Catch plate, ubehandlet stainless steel, angle mounting, L=29,5mm, B=35mm, H=10,5mm
MT100315
Catch plate manufactured in stainless steel with an untreated surface. The length is 29,5mm, the width is 35mm and the height is 10,5mm. The catch palte has a hole diameter of 4,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Stainless steel
Mounting type
Angle mounting
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
180
Hole diameter in mm
4.1
Height in mm
10.5
Length in mm
29.5
Nettovægt
0.015
Varekode
8302490099
Lande-/områdekode for oprindelse
GB
Long description
Catch plate manufactured in stainless steel with an untreated surface. The length is 29,5mm, the width is 35mm and the height is 10,5mm. The catch palte has a hole diameter of 4,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
