Catch plate, ubehandlet stainless steel, angle mounting, L=33mm, B=51mm, H=13,8mm
MT100346

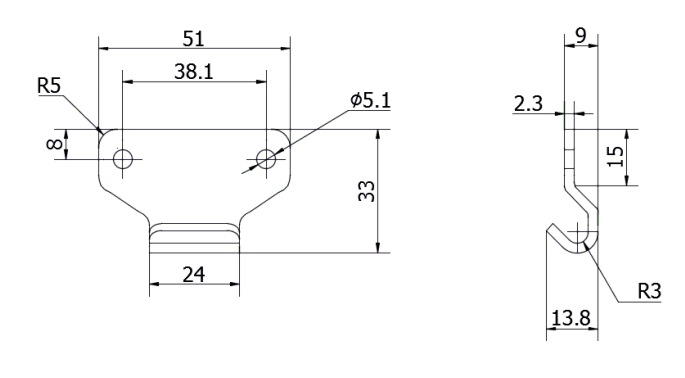

Catch plate manufactured in stainless steel with an untreated surface. The length is 33mm, the width is 51mm and the height is 13,8mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Stainless steel
Mounting type
Angle mounting
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
620
Hole diameter in mm
5.1
Height in mm
13.8
Length in mm
33
Long description
Catch plate manufactured in stainless steel with an untreated surface. The length is 33mm, the width is 51mm and the height is 13,8mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
