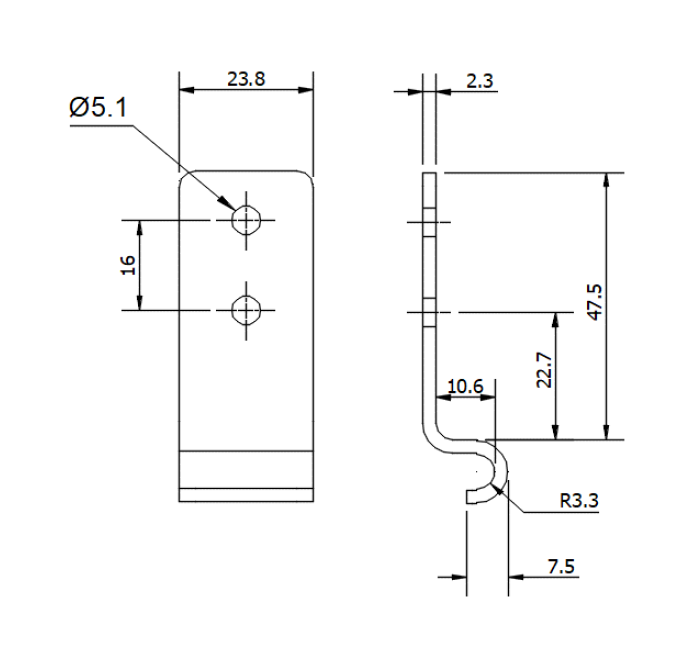

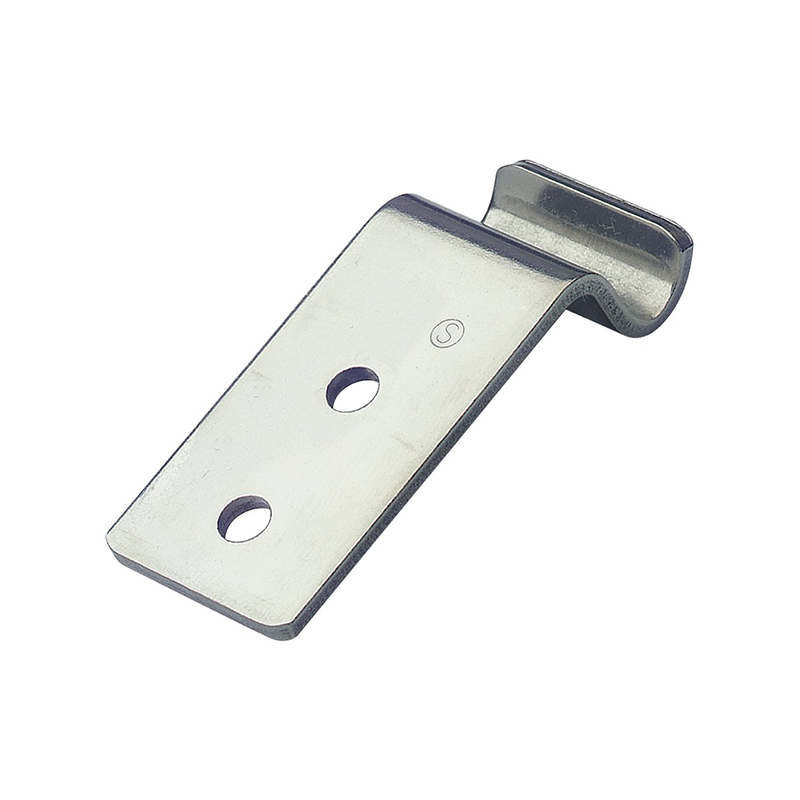

Catch plate, ubehandlet stainless steel, angle mounting, L=58,7mm, B=23,8mm, H=15,2mm
MT100206
Catch plate manufactured in stainless steel with an untreated surface. The length is 58,7mm, the width is 23,8mm and the height is 15,2mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Stainless steel
Mounting type
Angle mounting
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
700
Hole diameter in mm
5.1
Height in mm
15.2
Length in mm
58.7
Long description
Catch plate manufactured in stainless steel with an untreated surface. The length is 58,7mm, the width is 23,8mm and the height is 15,2mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
