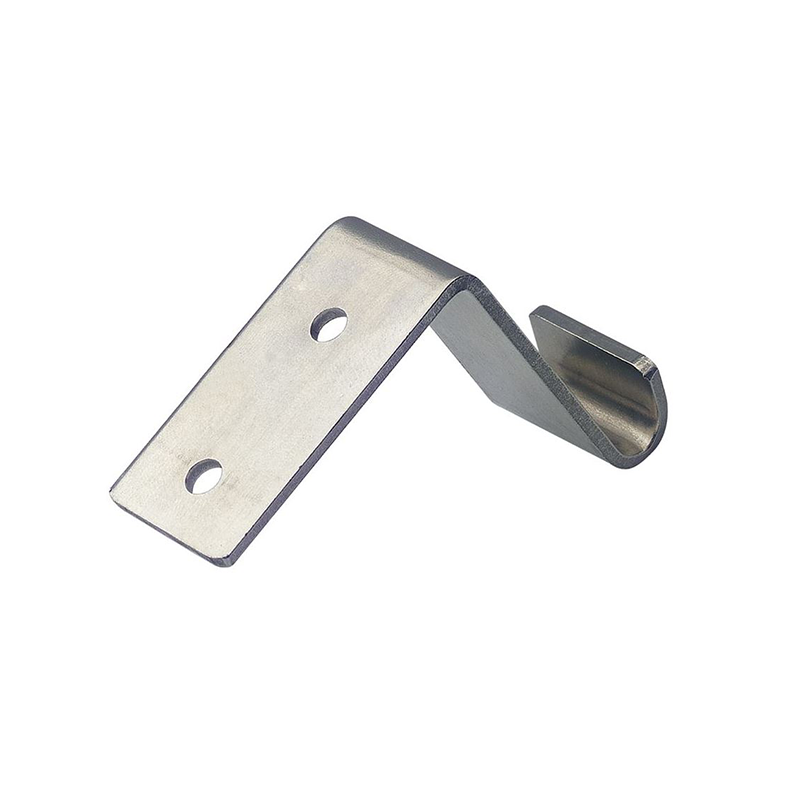

Catch plate, ubehandlet stainless steel, angle mounting, L=61,1mm, B=24mm, H=51mm
MT100226

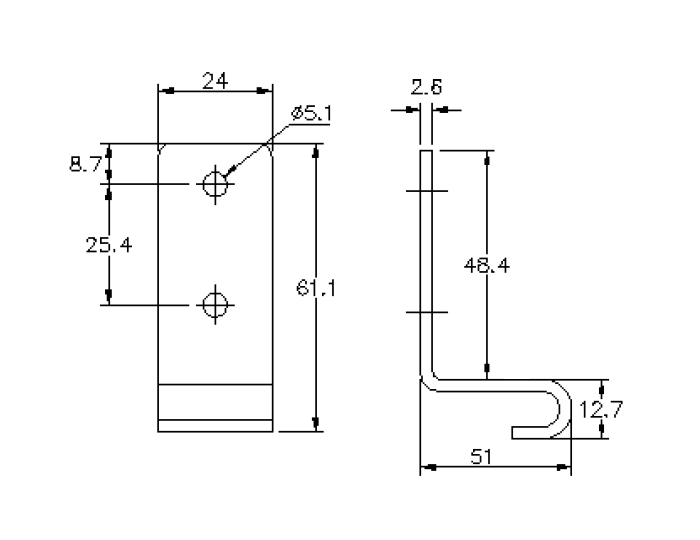

Catch plate manufactured in stainless steel with an untreated surface. The length is 61,1mm, the width is 24mm and the height is 51mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Stainless steel
Mounting type
Angle mounting
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
700
Hole diameter in mm
5.1
Height in mm
51
Length in mm
61.1
Long description
Catch plate manufactured in stainless steel with an untreated surface. The length is 61,1mm, the width is 24mm and the height is 51mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
