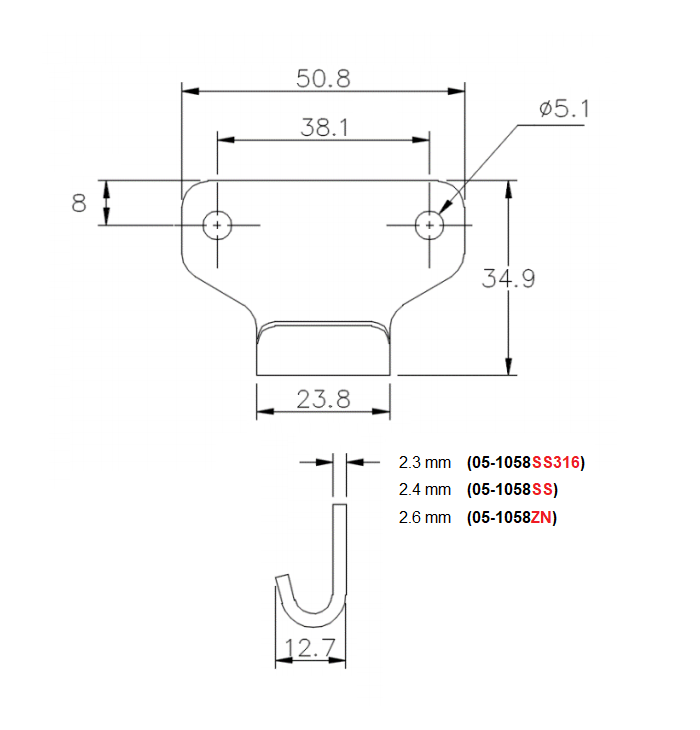

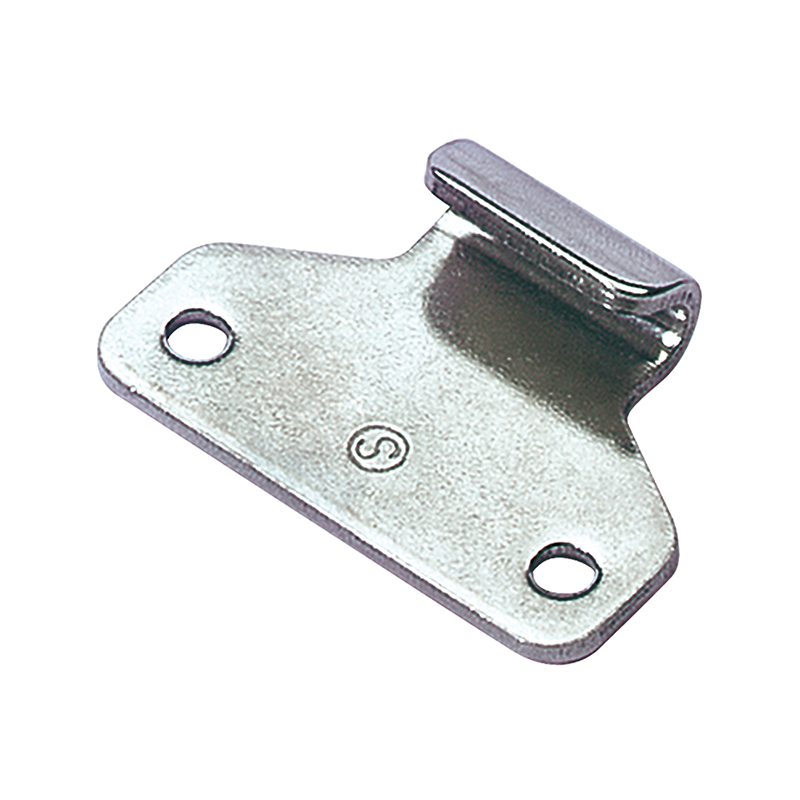

Catch plate, ubehandlet stainless steel, flat mounting, L=34,9mm, B=50,8mm, H=12,7mm
MT100291
Catch plate manufactured in stainless steel with an untreated surface. The length is 34,9mm, the width is 50,8mm and the height is 12,7mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Stainless steel
Mounting type
Flat mounting
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
620
Hole diameter in mm
5.1
Height in mm
12.7
Length in mm
34.9
Long description
Catch plate manufactured in stainless steel with an untreated surface. The length is 34,9mm, the width is 50,8mm and the height is 12,7mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
