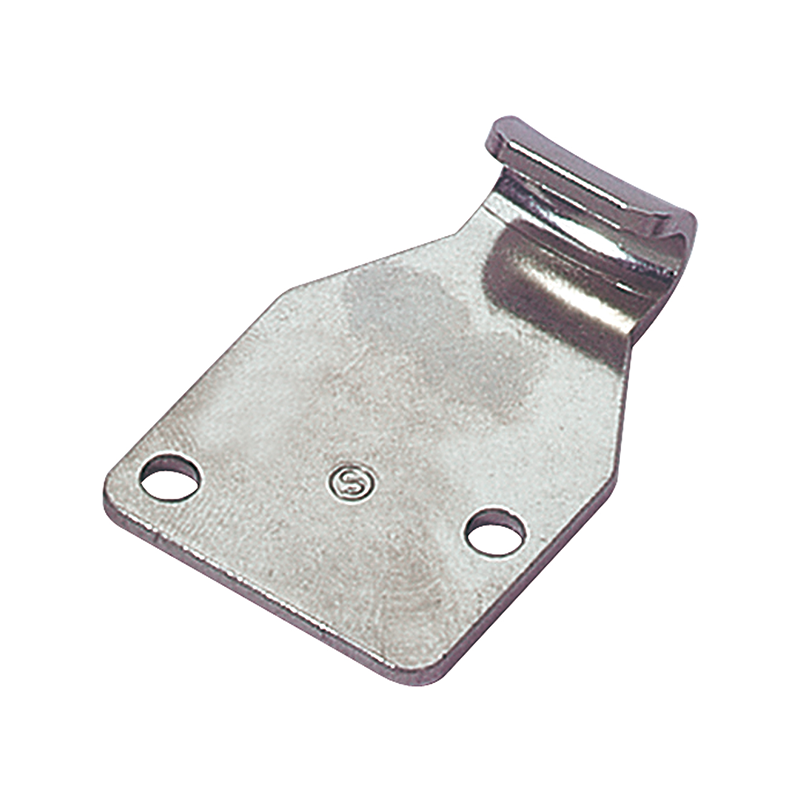

Catch plate, ubehandlet stainless steel, flat mounting, L=45mm, B=30mm, H=11,2mm
MT100301

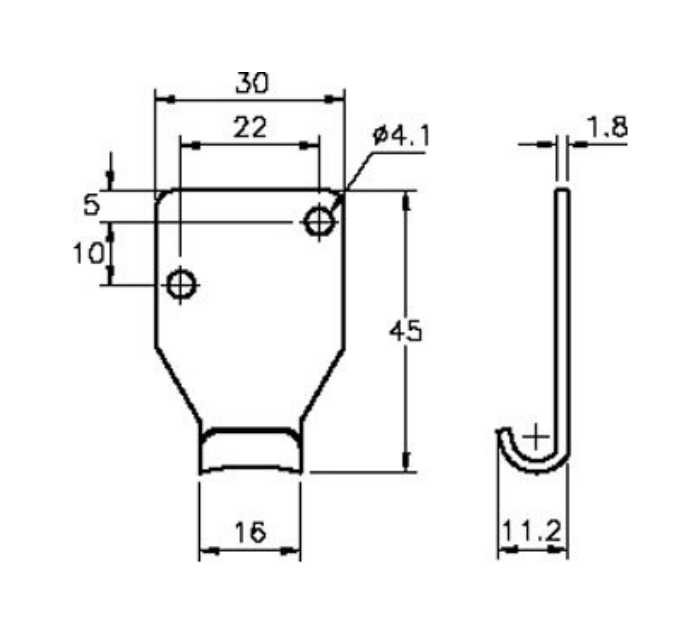

Catch plate manufactured in stainless steel with an untreated surface. The length is 45mm, the width is 30mm and the height is 11,2mm. The catch palte has a hole diameter of 4,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Stainless steel
Mounting type
Flat mounting
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
400
Hole diameter in mm
4.1
Height in mm
11.2
Length i mm
45
Long description
Catch plate manufactured in stainless steel with an untreated surface. The length is 45mm, the width is 30mm and the height is 11,2mm. The catch palte has a hole diameter of 4,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
