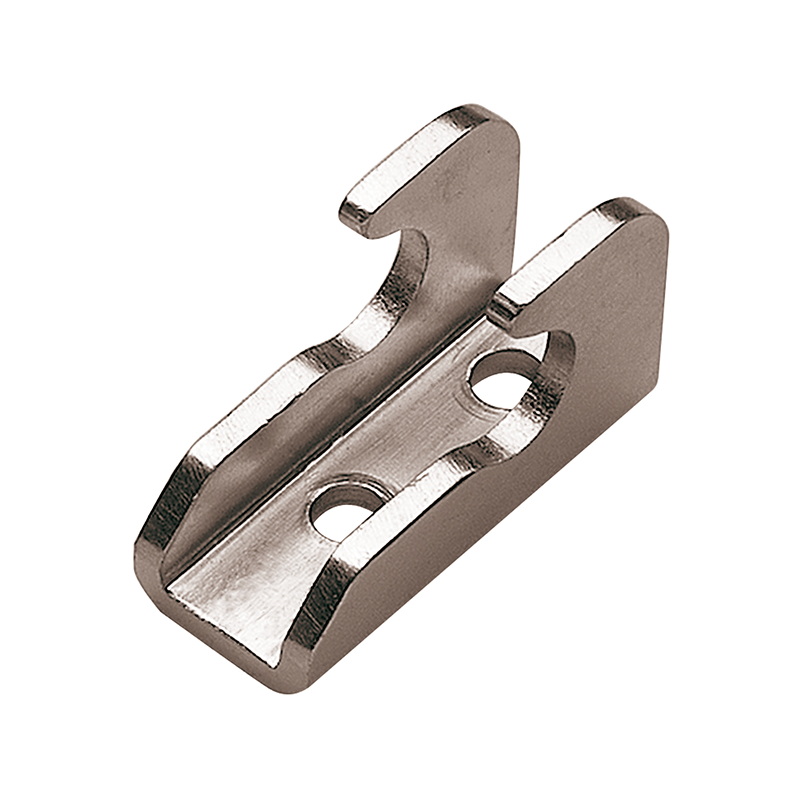

Catch plate, ubehandlet stainless steel, flat mounting, L=56,3mm, B=24,4mm, H=35mm
MT100271

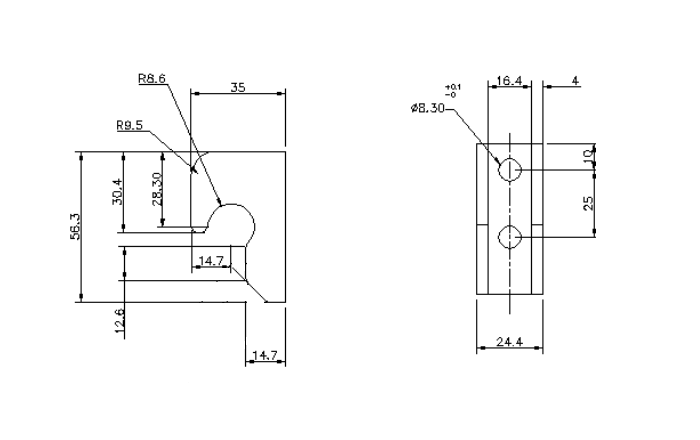

Catch plate manufactured in stainless steel with an untreated surface. The length is 56,3mm, the width is 24,4mm and the height is 35mm. The catch palte has a hole diameter of 8,3 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Stainless steel
Mounting type
Flat mounting
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
2500
Hole diameter in mm
8.3
Height in mm
35
Length in mm
56.3
Long description
Catch plate manufactured in stainless steel with an untreated surface. The length is 56,3mm, the width is 24,4mm and the height is 35mm. The catch palte has a hole diameter of 8,3 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
