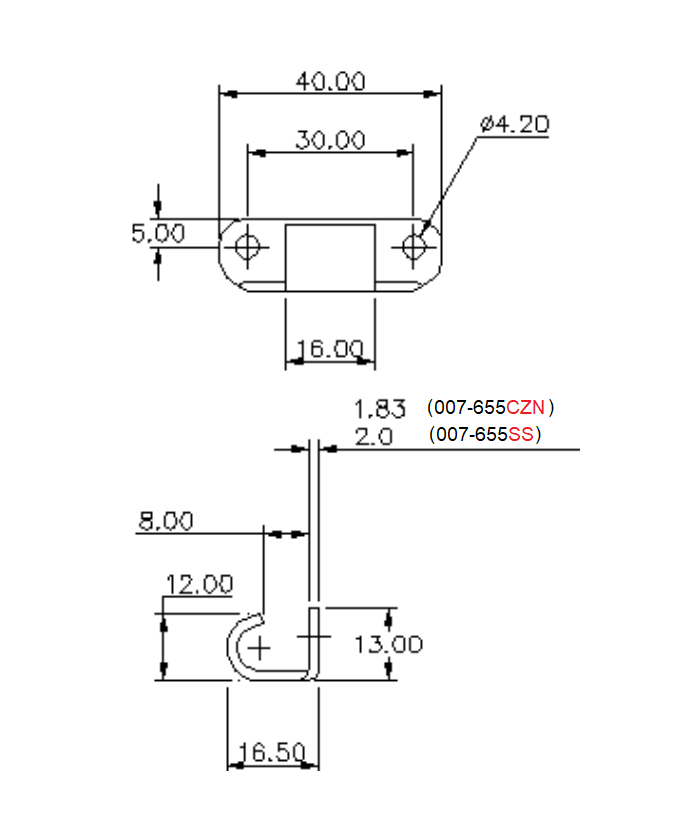

Catch plate, untreated stainless steel, angle mounting, L=13mm, B=40mm, H=16,5mm
MT100069
Catch plate manufactured in stainless steel with an untreated surface. The length is 13mm, the width is 40mm and the height is 16,5mm. The catch palte has a hole diameter of 4,2 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Stainless steel
Mounting type
Angle mounting
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
200
Hole diameter in mm
4.2
Height in mm
16.5
Length in mm
13
Long description
Catch plate manufactured in stainless steel with an untreated surface. The length is 13mm, the width is 40mm and the height is 16,5mm. The catch palte has a hole diameter of 4,2 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
