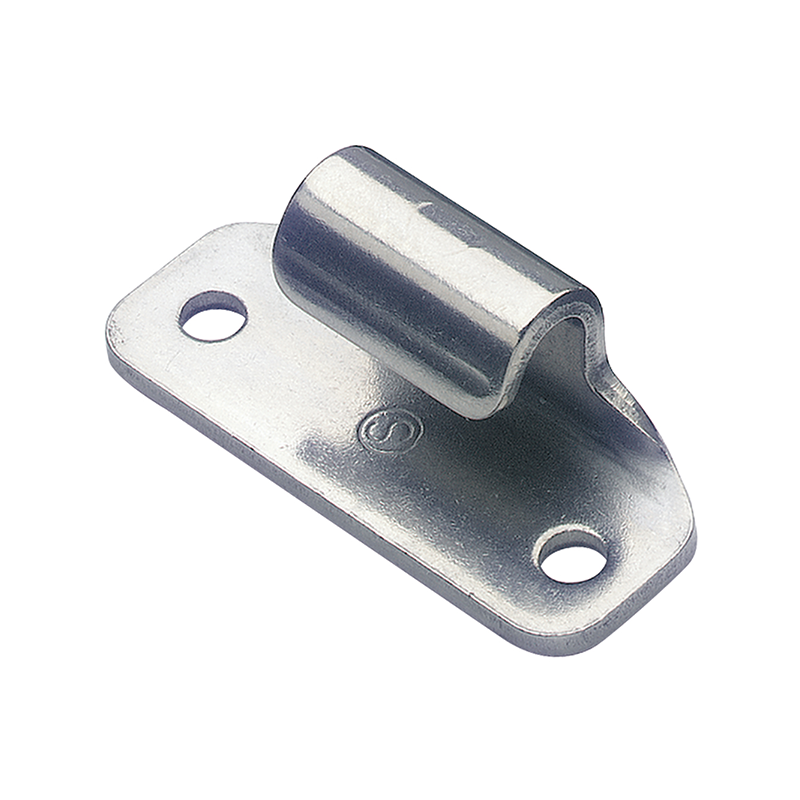

Catch plate, untreated stainless steel, angle mounting, L=20mm, B=50,8mm, H=19mm
MT100064

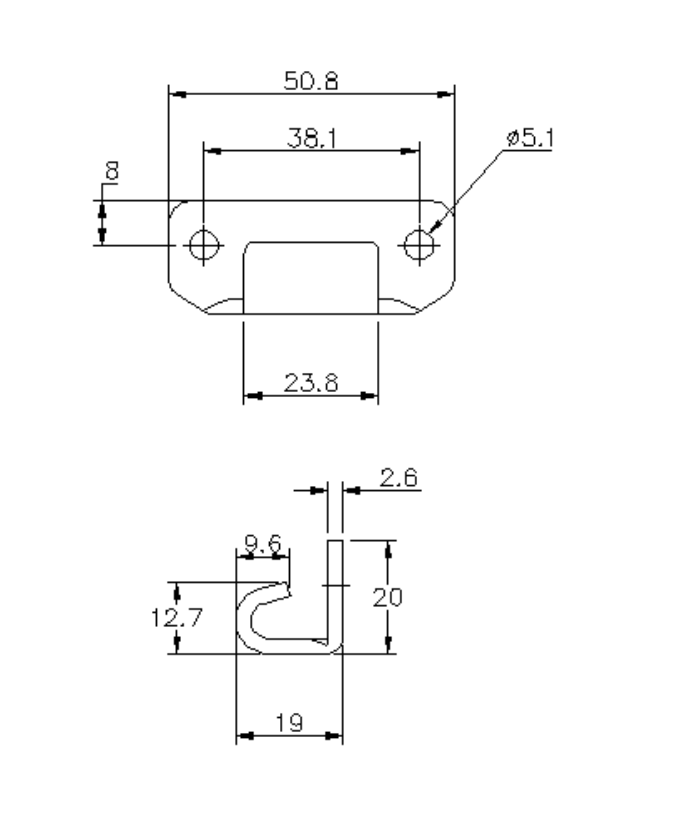

Catch plate manufactured in stainless steel with an untreated surface. The length is 20mm, the width is 50,8mm and the height is 19mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Stainless steel
Mounting type
Angle mounting
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
500
Hole diameter in mm
5.1
Height in mm
19
Length in mm
20
Long description
Catch plate manufactured in stainless steel with an untreated surface. The length is 20mm, the width is 50,8mm and the height is 19mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
