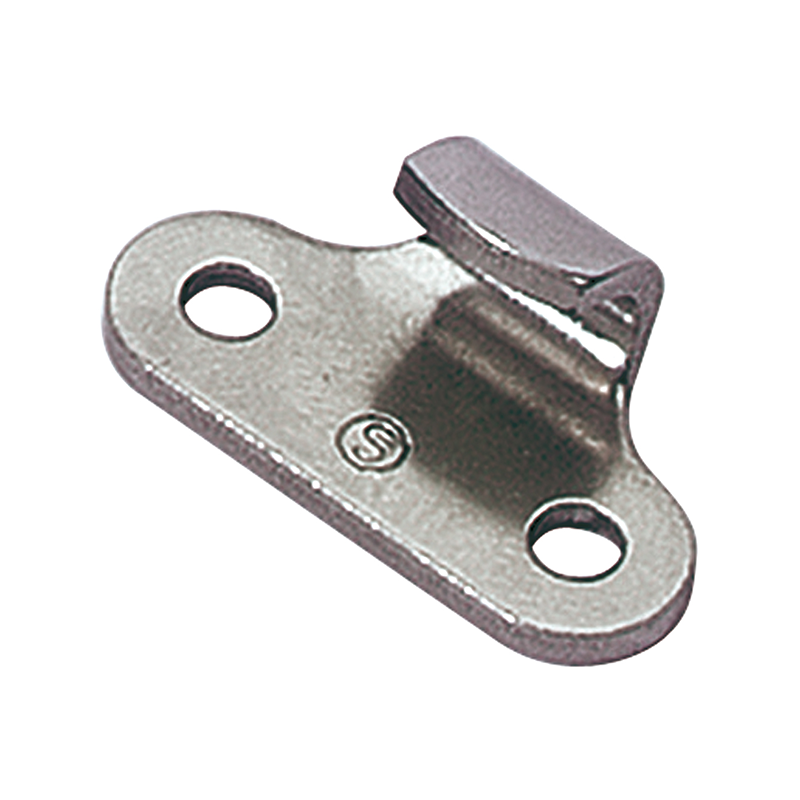

Catch plate, untreated stainless steel, flat mounting, L=17,2mm, B=32,2mm, H=11,3mm
MT100097

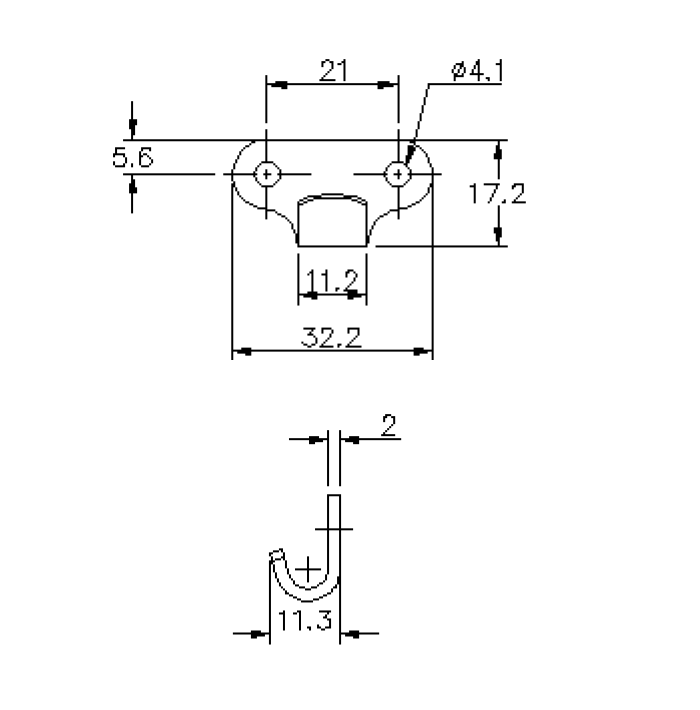

Catch plate manufactured in stainless steel with an untreated surface. The length is 17,2mm, the width is 32,2mm and the height is 11,3mm. The catch palte has a hole diameter of 4,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Stainless steel
Mounting type
Flat mounting
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
250
Hole diameter in mm
4.1
Height in mm
11.3
Length in mm
17.2
Long description
Catch plate manufactured in stainless steel with an untreated surface. The length is 17,2mm, the width is 32,2mm and the height is 11,3mm. The catch palte has a hole diameter of 4,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
