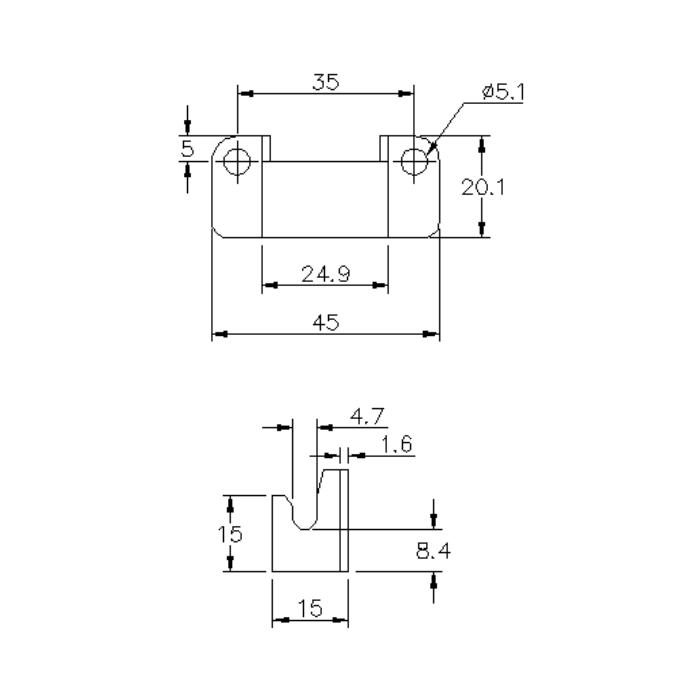

Catch plate, untreated stainless steel, flat mounting, L=20,1mm, B=45mm, H=15mm
MT100033
Catch plate manufactured in stainless steel with an untreated surface. The length is 20,1mm, the width is 45mm and the height is 15mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Stainless steel
Mounting type
Flat mounting
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
375
Hole diameter in mm
5.1
Height in mm
15
Length in mm
20.1
Long description
Catch plate manufactured in stainless steel with an untreated surface. The length is 20,1mm, the width is 45mm and the height is 15mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
