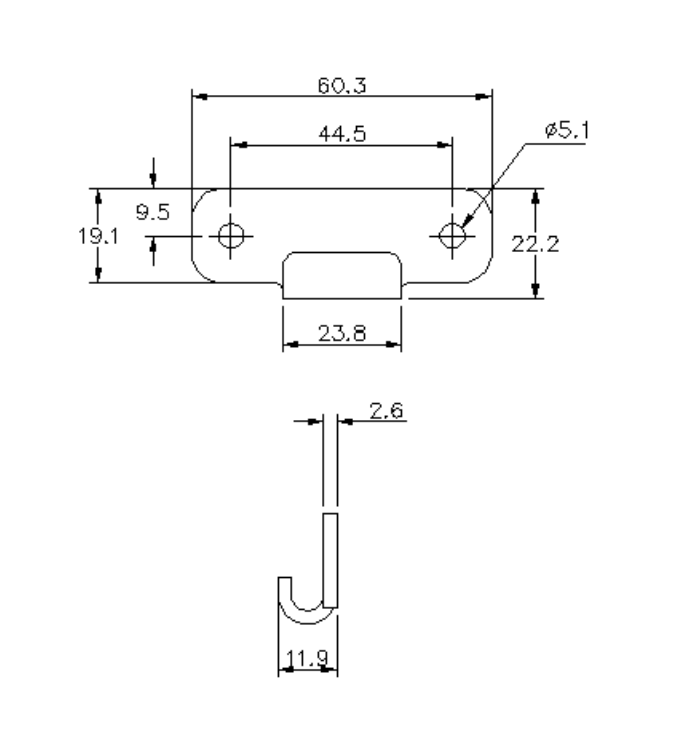

Catch plate, untreated stainless steel, flat mounting, L=22,2mm, B=60,3mm, H=11,9mm
MT100087
Catch plate manufactured in stainless steel with an untreated surface. The length is 22,2mm, the width is 60,3mm and the height is 11,9mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Stainless steel
Mounting type
Flat mounting
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
700
Hole diameter in mm
5.1
Height in mm
11.9
Length in mm
22.2
Long description
Catch plate manufactured in stainless steel with an untreated surface. The length is 22,2mm, the width is 60,3mm and the height is 11,9mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
