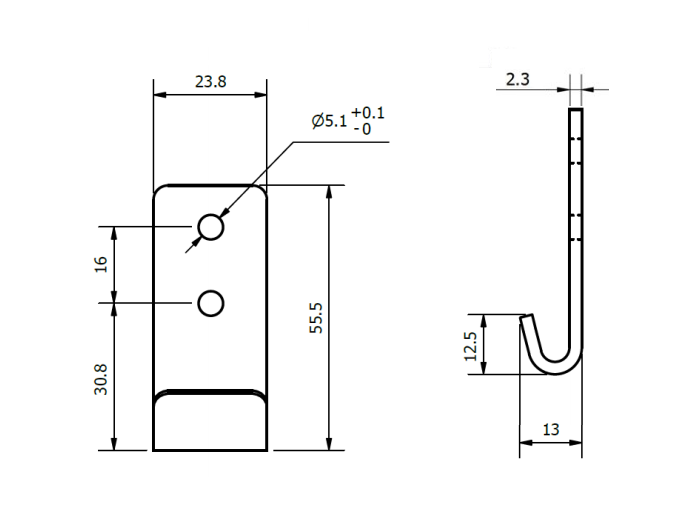

Catch plate, untreated stainless steel, flat mounting, L=55,5mm, B=23,8mm, H=13mm
MT100131
Catch plate manufactured in stainless steel with an untreated surface. The length is 55,5mm, the width is 23,8mm and the height is 13mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Stainless steel
Mounting type
Flat mounting
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
700
Hole diameter in mm
5.1
Height in mm
13
Length in mm
55.5
Long description
Catch plate manufactured in stainless steel with an untreated surface. The length is 55,5mm, the width is 23,8mm and the height is 13mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
