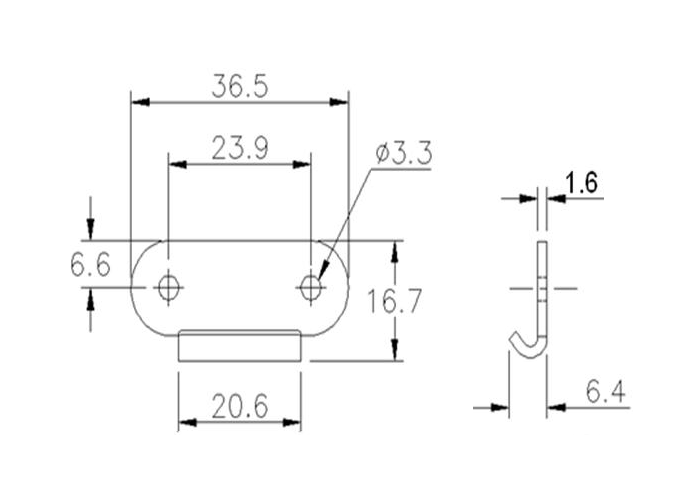

Catch plate, untreated stainless steel, to use w/butterfly latch, L=16,7mm, B=36,5mm, H=6,4mm
MT100108
Catch plate manufactured in stainless steel with an untreated surface. The length is 16,7mm, the width is 36,5mm and the height is 6,4mm. The catch palte has a hole diameter of 3,3 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Stainless steel
Mounting type
To use with butterfly latch
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
300
Hole diameter in mm
3.3
Height in mm
6.4
Length in mm
16.7
Nettovægt
0.008
Varekode
8302490099
Lande-/områdekode for oprindelse
GB
Long description
Catch plate manufactured in stainless steel with an untreated surface. The length is 16,7mm, the width is 36,5mm and the height is 6,4mm. The catch palte has a hole diameter of 3,3 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
