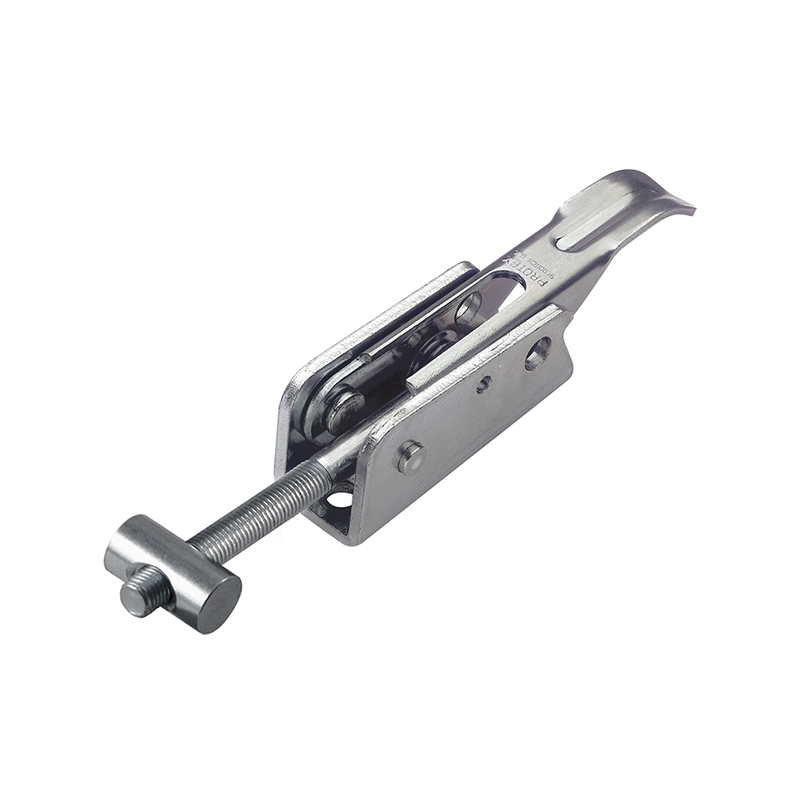

Toggle latch, acid proof stainless steel, L=187,6, B=34,6, H=38, adjustable
MT106162

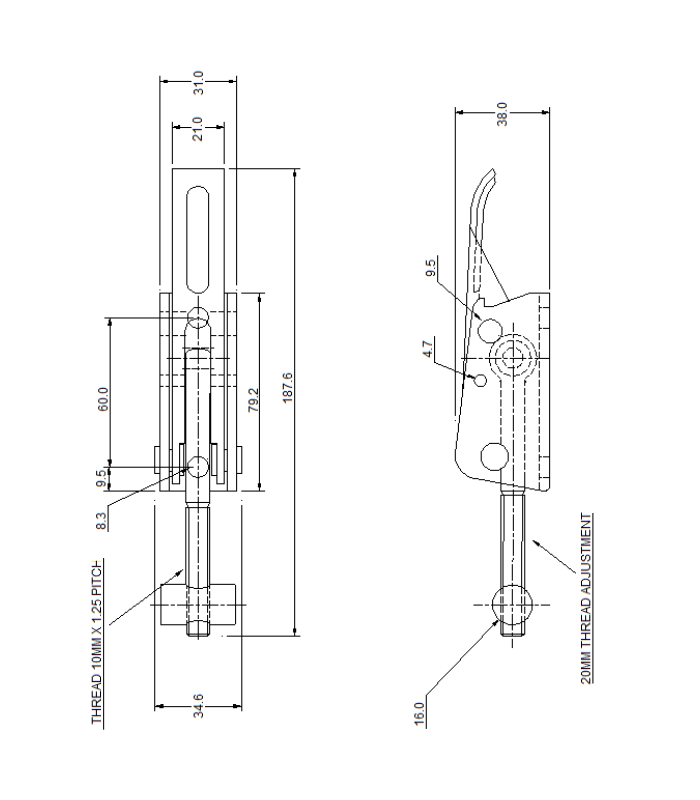

Toggle latch manufactured in acid proof stainless steel. The length is 187,6 mm, the width is 34,6 mm and the height is 38 mm. The toggle latch is adjustable and does not have a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
Load class
High
Spring claw
No
Catch plate
Not included
Padlockable
Yes
Adjustable
Yes
Material
AISI 316
Material type
Acid proof Stainless Steel
Key lock
No
Undercentre
No
Series
043
Safety lock
No
Sealing pin
Yes
Multi-directional tension
No
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
No
Breakage load (Ultimate stress) in kg
2500
Height in mm
38
Length in mm
187.6
Long description
Toggle latch manufactured in acid proof stainless steel. The length is 187,6 mm, the width is 34,6 mm and the height is 38 mm. The toggle latch is adjustable and does not have a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
