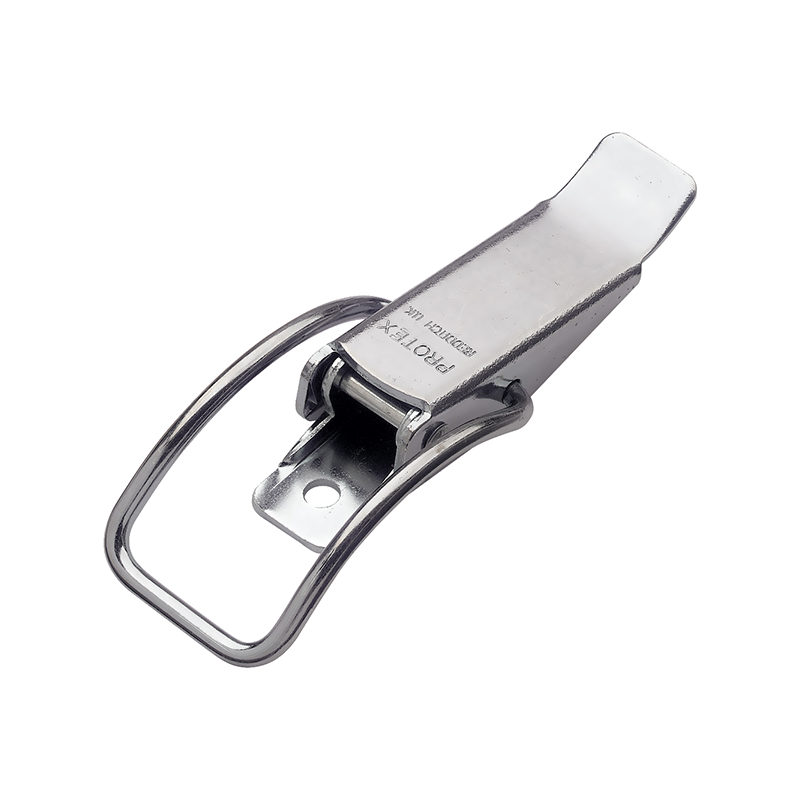

Toggle latch, stainless steel, L=104, B=34, H=20, not adjustable
MT105475
Toggle latch manufactured in stainless steel. The length is 104 mm, the width is 34 mm and the height is 20 mm. The toggle latch is not adjustable and has a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
Load class
Medium
Spring claw
Yes
Hage
Not included
Padlockable
No
Adjustable
No
Material type
Stainless steel
Key lock
No
Undercentre
No
Series
030
Safety lock
No
Multi-directional tension
No
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
No
Breakage load (Ultimate stress) in kg
450
Height in mm
20
Length i mm
104
Long description
Toggle latch manufactured in stainless steel. The length is 104 mm, the width is 34 mm and the height is 20 mm. The toggle latch is not adjustable and has a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
