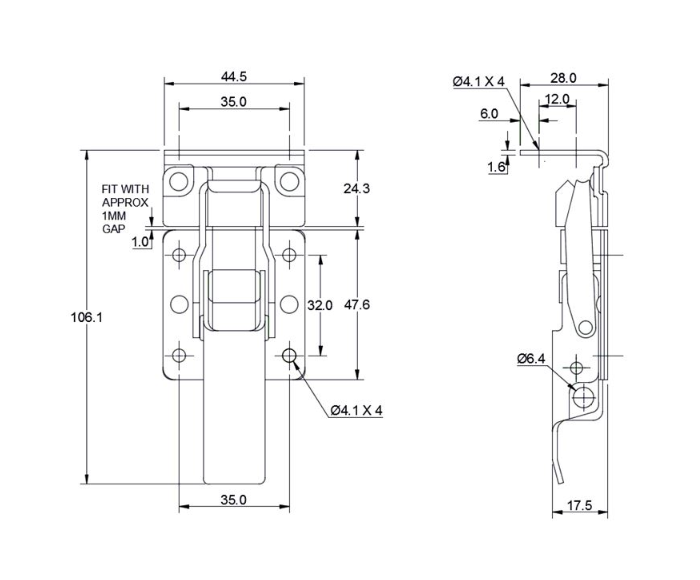

Toggle latch, stainless steel, L=106,1, B=44,5, H=17,5, not adjustable
MT108753
Toggle latch manufactured in stainless steel. The length is 106,1 mm, the width is 44,5 mm and the height is 17,5 mm. The toggle latch is not adjustable and does not have a spring claw. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
Spring claw
No
Hage
Included
Padlockable
Yes
Adjustable
No
Material
AISI 304
Material type
Stainless steel
Key lock
No
Undercentre
No
Surface finish
Electro zinc plated
Series
088
Safety lock
No
Sealing pin
Yes
Multi-directional tension
Yes
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
No
Breakage load (Ultimate stress) in kg
600
Height in mm
17.5
Length i mm
106.1
Long description
Toggle latch manufactured in stainless steel. The length is 106,1 mm, the width is 44,5 mm and the height is 17,5 mm. The toggle latch is not adjustable and does not have a spring claw. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
