Toggle latch, stainless steel, L=114, B=40, H=17, adjustable
MT107412

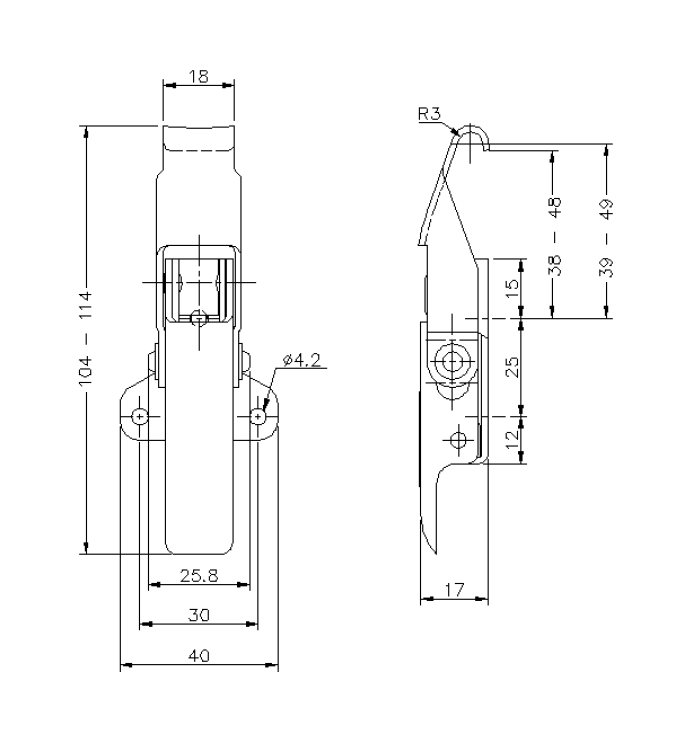

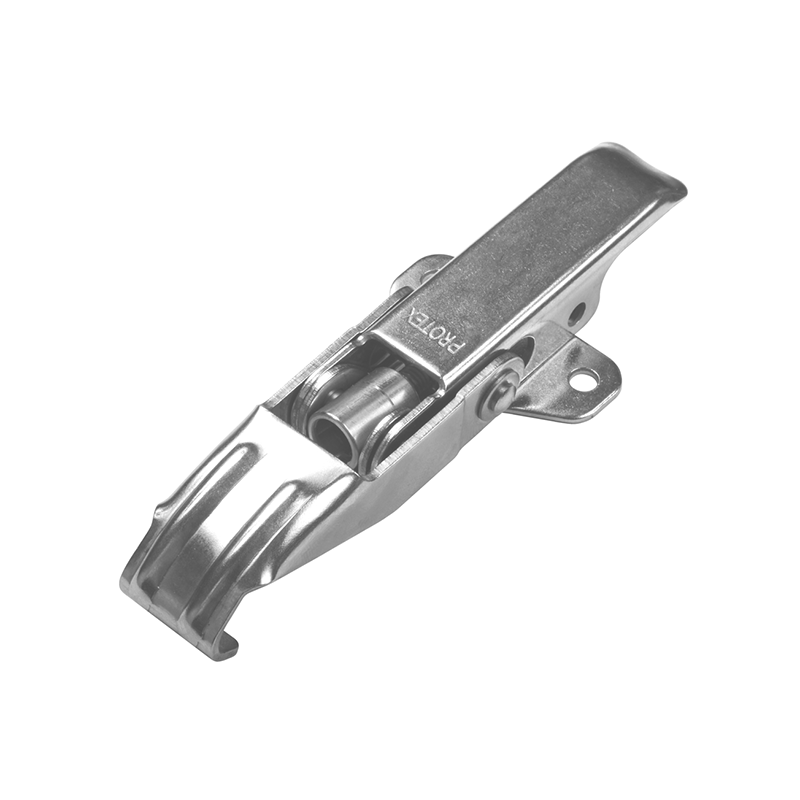

Toggle latch manufactured in stainless steel. The length is 114 mm, the width is 40 mm and the height is 17 mm. The toggle latch is adjustable and does not have a spring claw. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
Load class
Medium
Spring claw
No
Hage
Applicable without catch plate
Padlockable
No
Adjustable
Yes
Material type
Stainless steel
Key lock
No
Undercentre
No
Series
060
Safety lock
No
Multi-directional tension
No
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
No
Breakage load (Ultimate stress) in kg
175
Height in mm
17
Length i mm
114
Long description
Toggle latch manufactured in stainless steel. The length is 114 mm, the width is 40 mm and the height is 17 mm. The toggle latch is adjustable and does not have a spring claw. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
