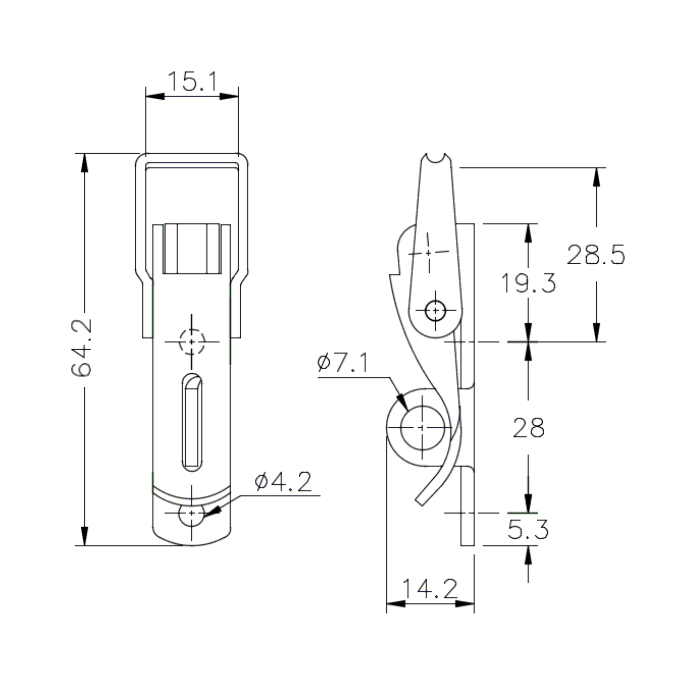

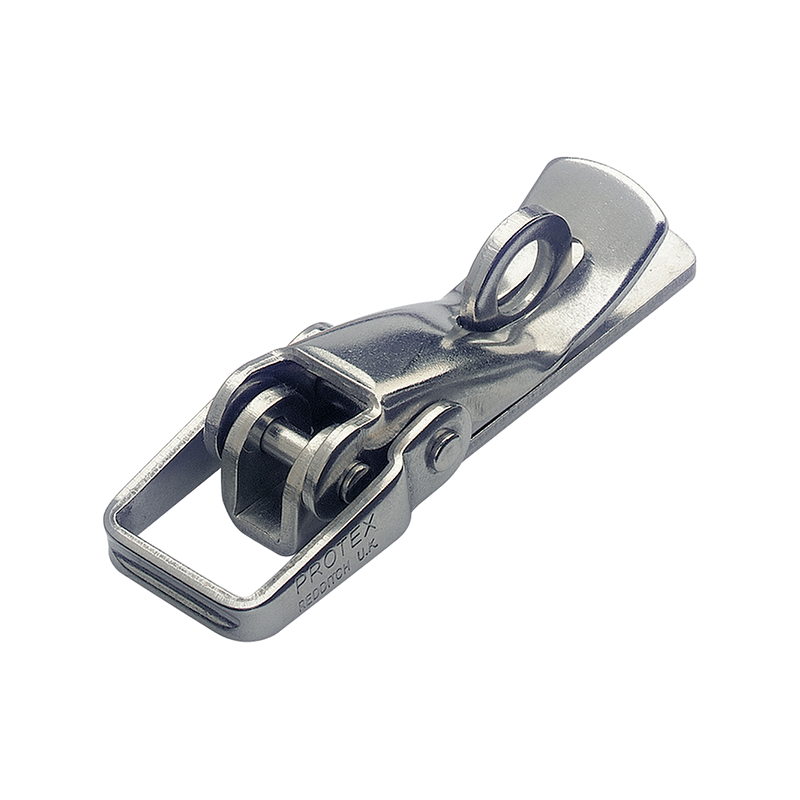

Toggle latch, stainless steel, L=64,2, B=18,5, H=14,2, not adjustable

MT105390
Toggle latch manufactured in stainless steel. The length is 64,2 mm, the width is 18,5 mm and the height is 14,2 mm. The toggle latch is not adjustable and does not have a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
Load class
Low
Spring claw
No
Catch plate
Not included
Padlockable
Yes
Adjustable
No
Material type
Stainless steel
Key lock
No
Undercentre
No
Series
029
Safety lock
No
Multi-directional tension
No
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
No
Breakage load (Ultimate stress) in kg
300
Height in mm
14.2
Length in mm
64.2
Long description
Toggle latch manufactured in stainless steel. The length is 64,2 mm, the width is 18,5 mm and the height is 14,2 mm. The toggle latch is not adjustable and does not have a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
