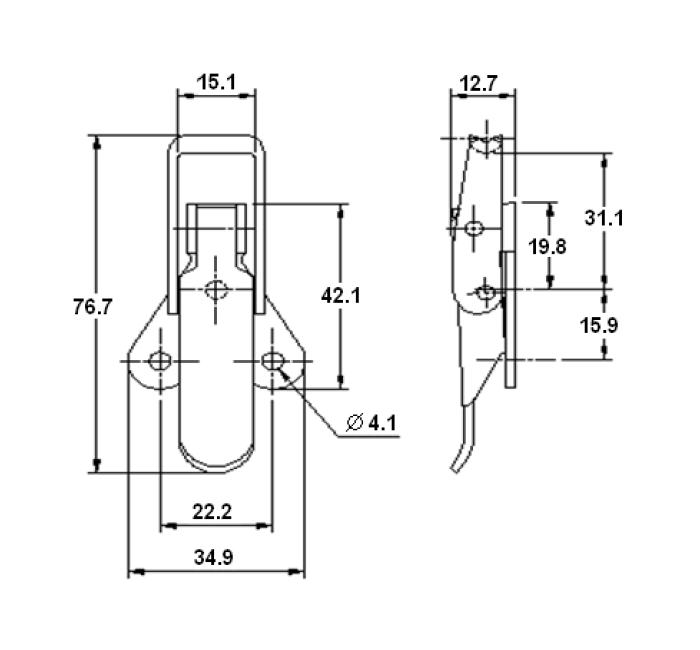

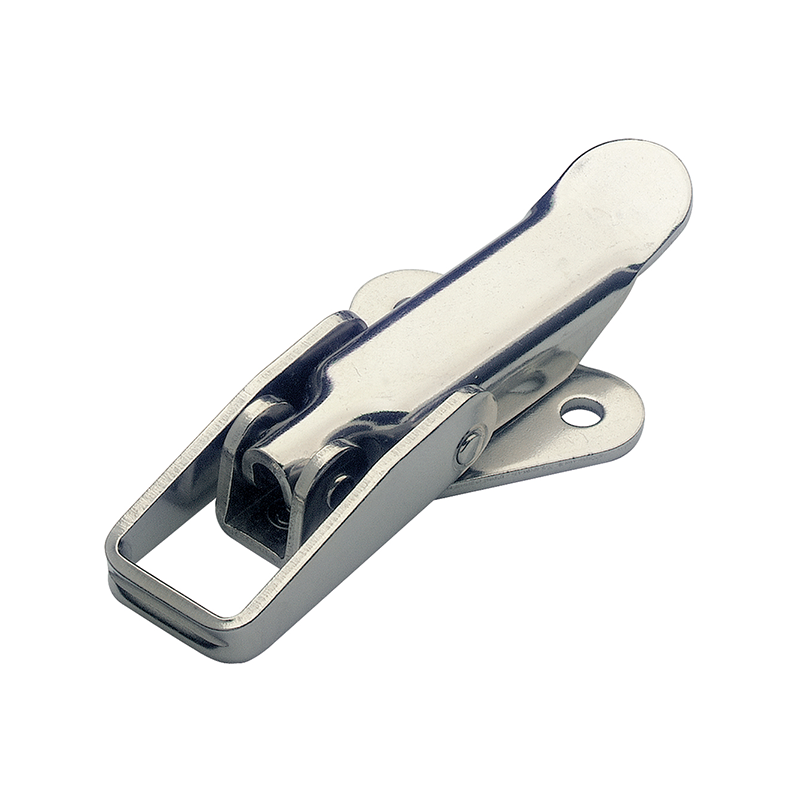

Toggle latch, stainless steel, L=76,7, B=34,9, H=12,7, not adjustable
MT105226
Toggle latch manufactured in stainless steel. The length is 76,7 mm, the width is 34,9 mm and the height is 12,7 mm. The toggle latch is not adjustable and does not have a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
Load class
Low
Spring claw
No
Catch plate
Not included
Padlockable
No
Adjustable
No
Material type
Stainless steel
Key lock
No
Undercentre
No
Series
025
Safety lock
No
Multi-directional tension
No
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
No
Breakage load (Ultimate stress) in kg
350
Height in mm
12.7
Length in mm
76.7
Long description
Toggle latch manufactured in stainless steel. The length is 76,7 mm, the width is 34,9 mm and the height is 12,7 mm. The toggle latch is not adjustable and does not have a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
