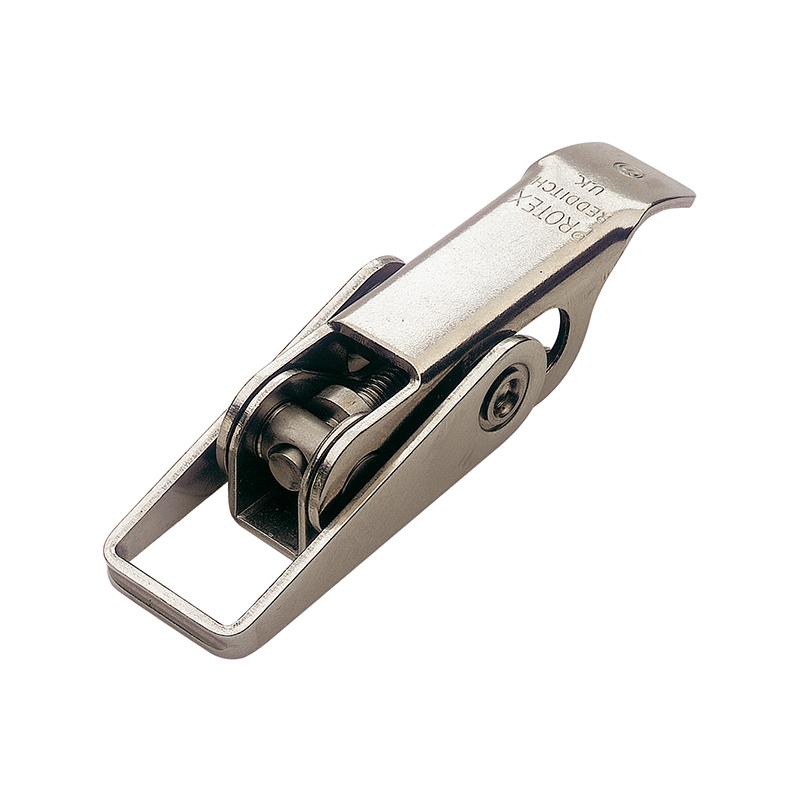

Toggle latch, stainless steel, L=77, B=18,5, H=15,4, adjustable
MT106624
Toggle latch manufactured in stainless steel. The length is 77 mm, the width is 18,5 mm and the height is 15,4 mm. The toggle latch is adjustable and does not have a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
Load class
Low
Spring claw
No
Catch plate
Not included
Padlockable
No
Adjustable
Yes
Material type
Stainless steel
Key lock
No
Undercentre
No
Series
050
Safety lock
No
Multi-directional tension
No
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
No
Breakage load (Ultimate stress) in kg
300
Height in mm
15.4
Length in mm
77
Long description
Toggle latch manufactured in stainless steel. The length is 77 mm, the width is 18,5 mm and the height is 15,4 mm. The toggle latch is adjustable and does not have a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
