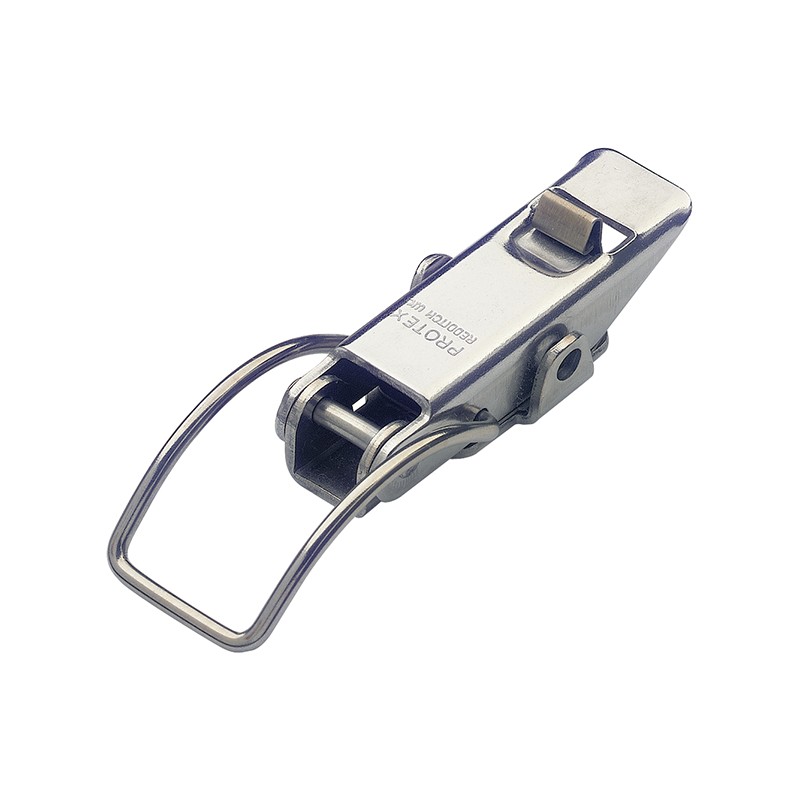

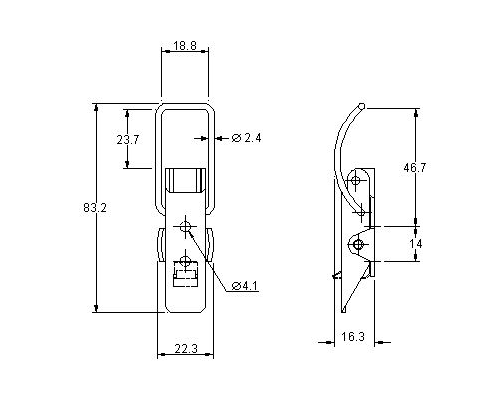

Toggle latch, stainless steel, L=83,2, B=23,6, H=16,3, not adjustable
MT105246
Toggle latch manufactured in stainless steel. The length is 83,2 mm, the width is 23,6 mm and the height is 16,3 mm. The toggle latch is not adjustable and has a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
Spring claw
Yes
Hage
Not included
Padlockable
No
Adjustable
No
Material type
Stainless steel
Key lock
No
Undercentre
No
Safety lock
Yes
Multi-directional tension
No
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
No
Breakage load (Ultimate stress) in kg
90
Height in mm
16.3
Length i mm
83.2
Long description
Toggle latch manufactured in stainless steel. The length is 83,2 mm, the width is 23,6 mm and the height is 16,3 mm. The toggle latch is not adjustable and has a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
Product data
or create an account to view prices, download datasheets and CAD files *
Create account*not available on all products
