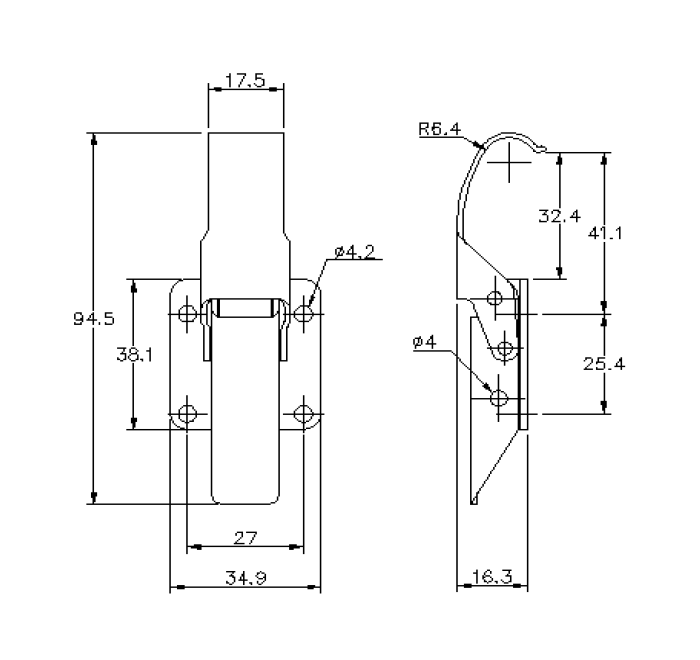

Toggle latch, stainless steel, L=94,5, B=34,9, H=16,3, not adjustable
MT105250
Toggle latch manufactured in stainless steel. The length is 94,5 mm, the width is 34,9 mm and the height is 16,3 mm. The toggle latch is not adjustable and does not have a spring claw. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
Load class
Low
Spring claw
No
Hage
Applicable without catch plate
Padlockable
No
Adjustable
No
Material
AISI 304
Material type
Stainless steel
Key lock
No
Undercentre
No
Series
027
Safety lock
No
Sealing pin
Yes
Multi-directional tension
No
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
No
Breakage load (Ultimate stress) in kg
50
Height in mm
16.3
Length i mm
94.5
Long description
Toggle latch manufactured in stainless steel. The length is 94,5 mm, the width is 34,9 mm and the height is 16,3 mm. The toggle latch is not adjustable and does not have a spring claw. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
