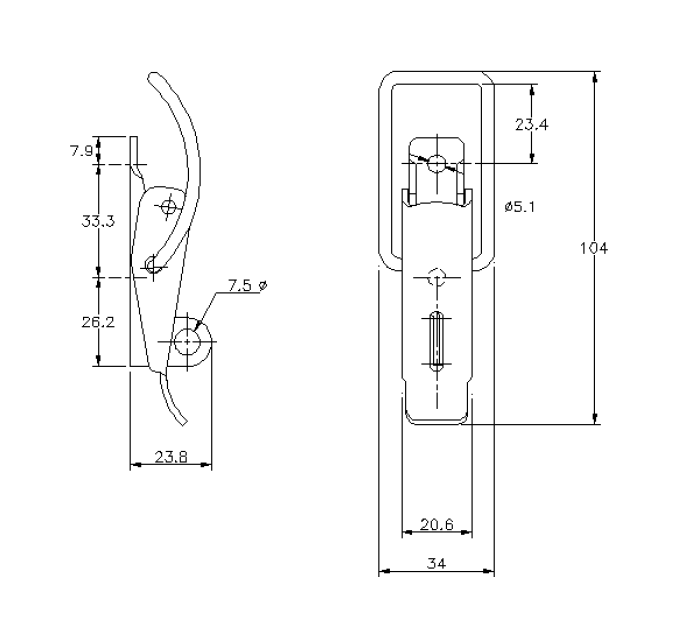

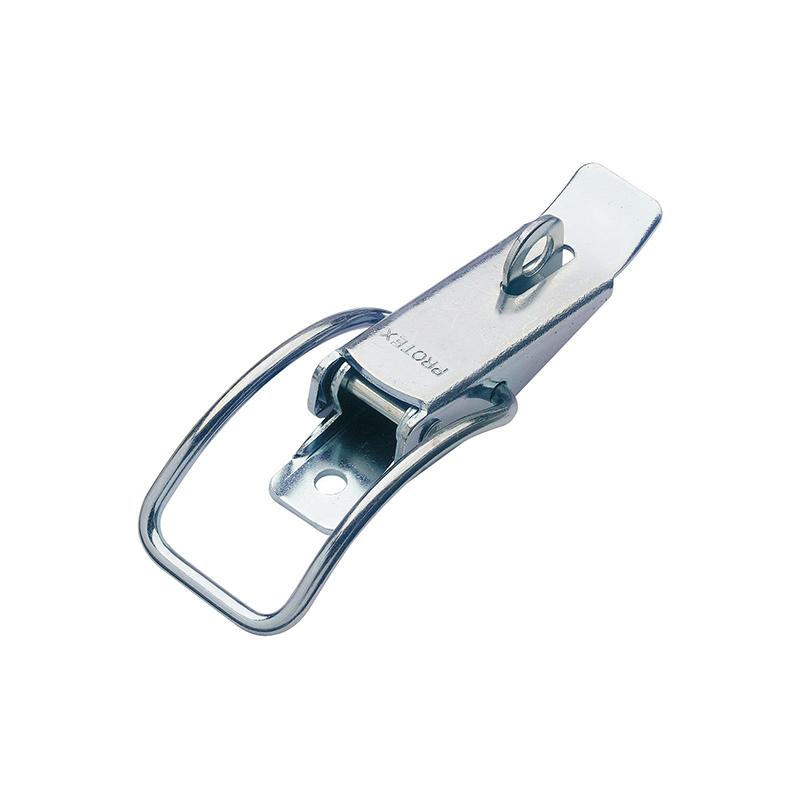

Toggle latch, steel, L=104, B=34, H=23,8, not adjustable
MT105486
Toggle latch manufactured in steel. The length is 104 mm, the width is 34 mm and the height is 23,8 mm. The toggle latch is not adjustable and has a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
Load class
Medium
Spring claw
Yes
Catch plate
Not included
Padlockable
Yes
Adjustable
No
Material type
Steel
Key lock
No
Undercentre
No
Surface finish
Electro zinc plated
Series
030
Safety lock
No
Multi-directional tension
No
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
No
Breakage load (Ultimate stress) in kg
450
Height in mm
23.8
Length in mm
104
Long description
Toggle latch manufactured in steel. The length is 104 mm, the width is 34 mm and the height is 23,8 mm. The toggle latch is not adjustable and has a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
