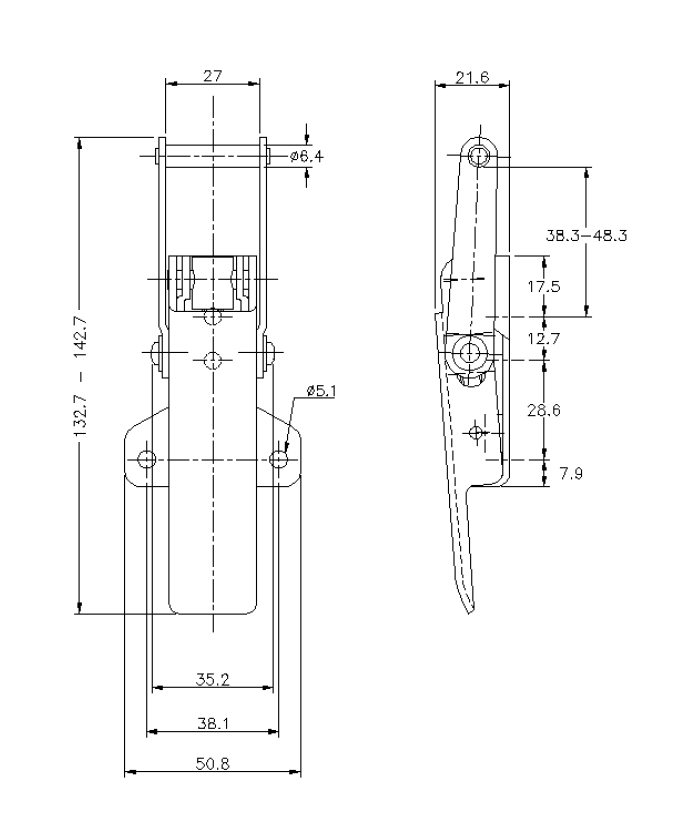

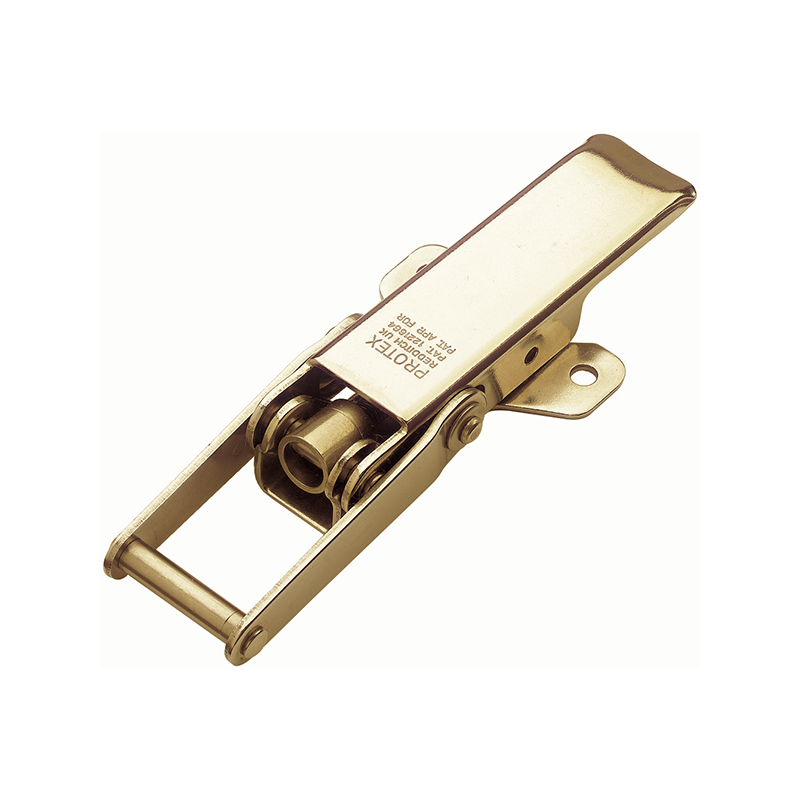

Toggle latch, steel, L=142,7, B=50,8, H=21,6, adjustable
MT107759
Toggle latch manufactured in steel. The length is 142,7 mm, the width is 50,8 mm and the height is 21,6 mm. The toggle latch is adjustable and does not have a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
Load class
Medium
Spring claw
No
Hage
Not included
Padlockable
No
Adjustable
Yes
Material type
Steel
Key lock
No
Undercentre
No
Surface finish
Electro zinc plated and yellow chromated
Series
070
Safety lock
No
Multi-directional tension
No
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
No
Breakage load (Ultimate stress) in kg
650
Height in mm
21.6
Length i mm
142.7
Long description
Toggle latch manufactured in steel. The length is 142,7 mm, the width is 50,8 mm and the height is 21,6 mm. The toggle latch is adjustable and does not have a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
