Toggle latch, steel, L=144,5, B=50,8, H=22,8, adjustable
MT108046

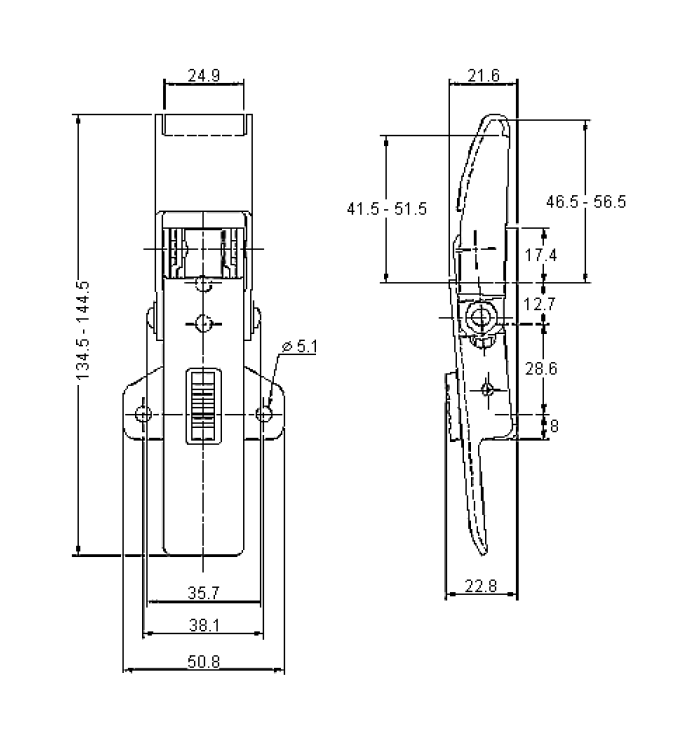

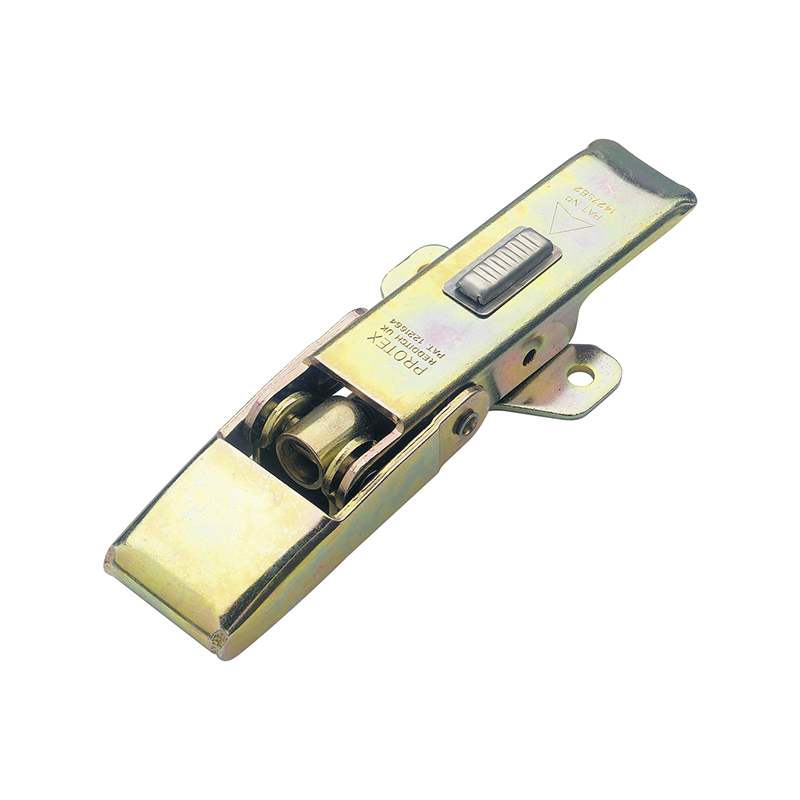

Toggle latch manufactured in steel. The length is 144,5 mm, the width is 50,8 mm and the height is 22,8 mm. The toggle latch is adjustable and does not have a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
Load class
Medium
Spring claw
No
Catch plate
Not included
Padlockable
No
Adjustable
Yes
Material type
Steel
Key lock
No
Undercentre
No
Surface finish
Electro zinc plated and yellow chromated
Series
071
Safety lock
Yes
Multi-directional tension
No
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
No
Breakage load (Ultimate stress) in kg
600
Height in mm
22.8
Length in mm
144.5
Nettovægt
0.173
Varekode
8302490099
Lande-/områdekode for oprindelse
GB
Long description
Toggle latch manufactured in steel. The length is 144,5 mm, the width is 50,8 mm and the height is 22,8 mm. The toggle latch is adjustable and does not have a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
