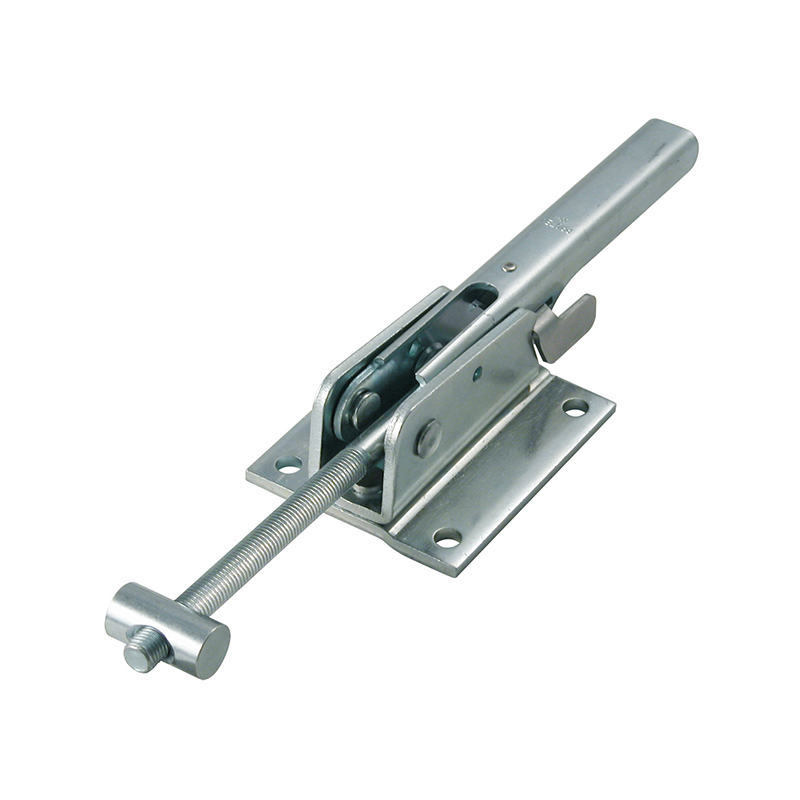

Toggle latch, steel, L=277, B=75, H=45, adjustable
MT106190

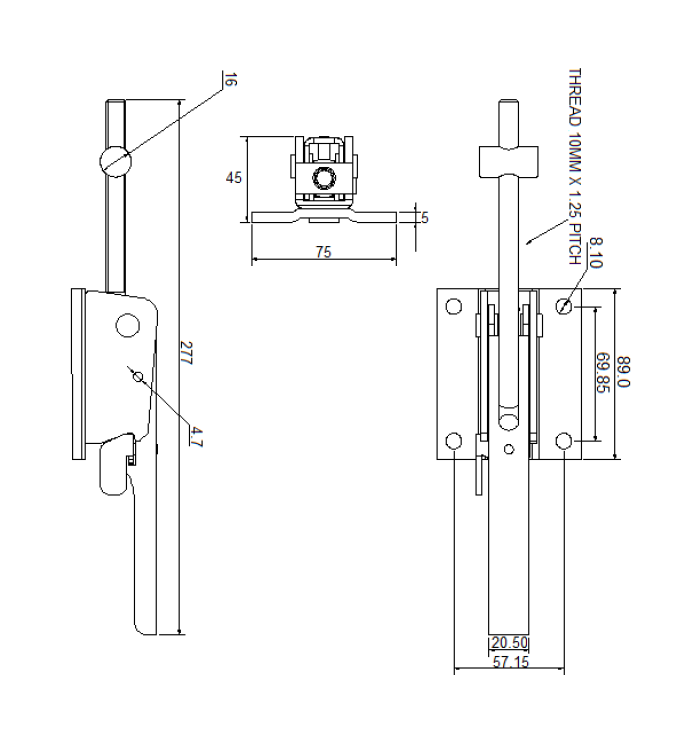

Toggle latch manufactured in steel. The length is 277 mm, the width is 75 mm and the height is 45 mm. The toggle latch is adjustable and does not have a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
Load class
High
Spring claw
No
Catch plate
Not included
Padlockable
No
Adjustable
Yes
Material type
Steel
Key lock
No
Undercentre
No
Surface finish
Electro zinc plated
Series
044
Safety lock
Yes
Multi-directional tension
No
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
No
Breakage load (Ultimate stress) in kg
2000
Height in mm
45
Length in mm
277
Long description
Toggle latch manufactured in steel. The length is 277 mm, the width is 75 mm and the height is 45 mm. The toggle latch is adjustable and does not have a spring claw.Note that the hatch is not included. We offer a wide range of toggle latches, so if you do not find what you are looking for - then please contact us.
