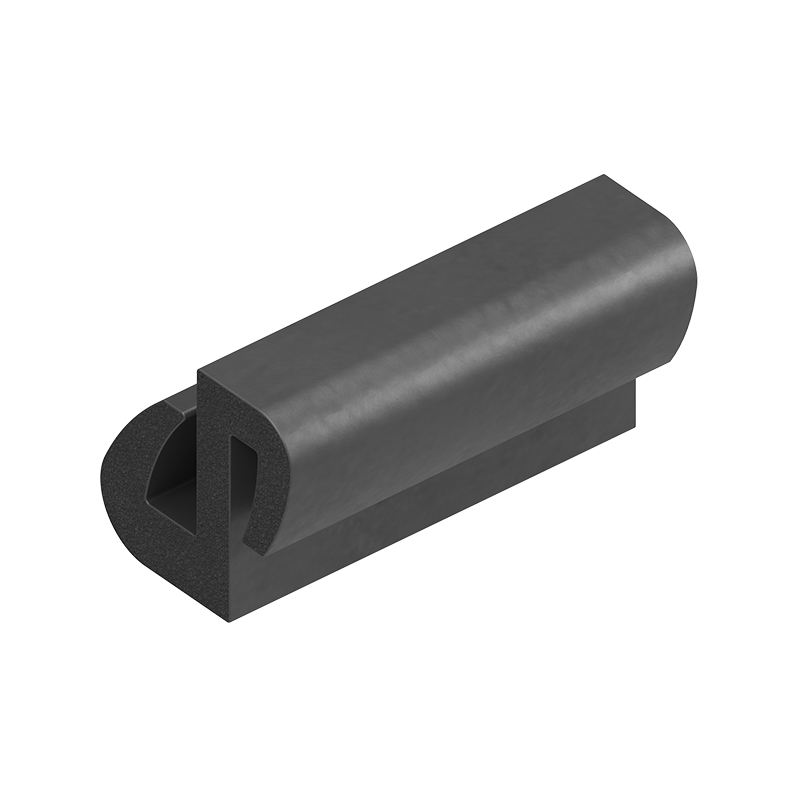

Glazing profile, black epdm, mounting height=8,7, glazing thickness=4, H=16,2
MT102459

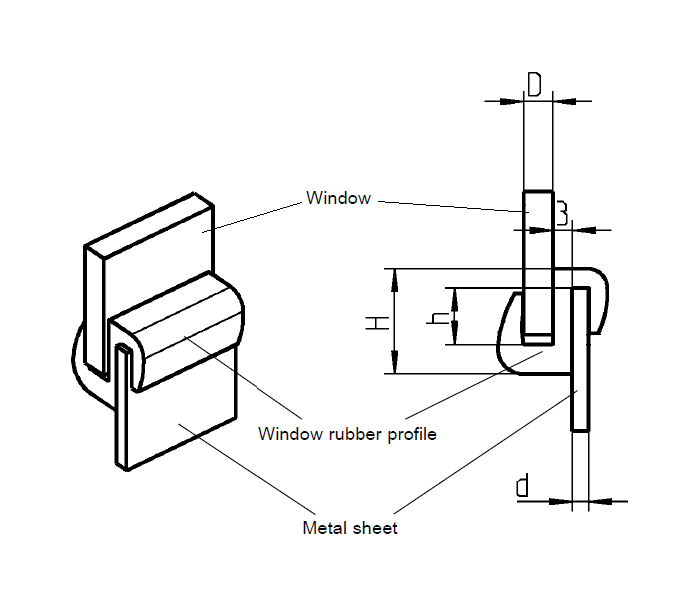

Glazing profile made in black epdm. The profile has a mounting height of 8,7 mm, a profil heightof 16,2 mm and fit to a glazing thickness of 4 mm. Remember to purchase locking strips also. Special products can be delivered on request.
Colour
Black
Shore standard
Shore A
Material type
EPDM
Metal plate thickness
2
Mounting height
8,7
Pane thickness
4
Height in mm
16.2
Hardness in °
60
Long description
Glazing profile made in black epdm. The profile has a mounting height of 8,7 mm, a profil heightof 16,2 mm and fit to a glazing thickness of 4 mm. Remember to purchase locking strips also. Special products can be delivered on request.
Product data
or create an account to view prices, download datasheets and CAD files *
Create account*not available on all products
