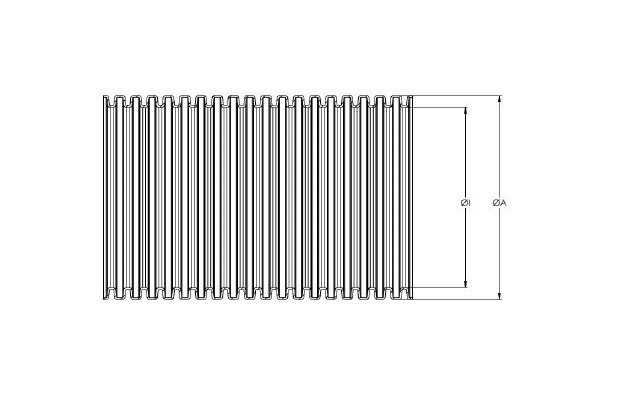

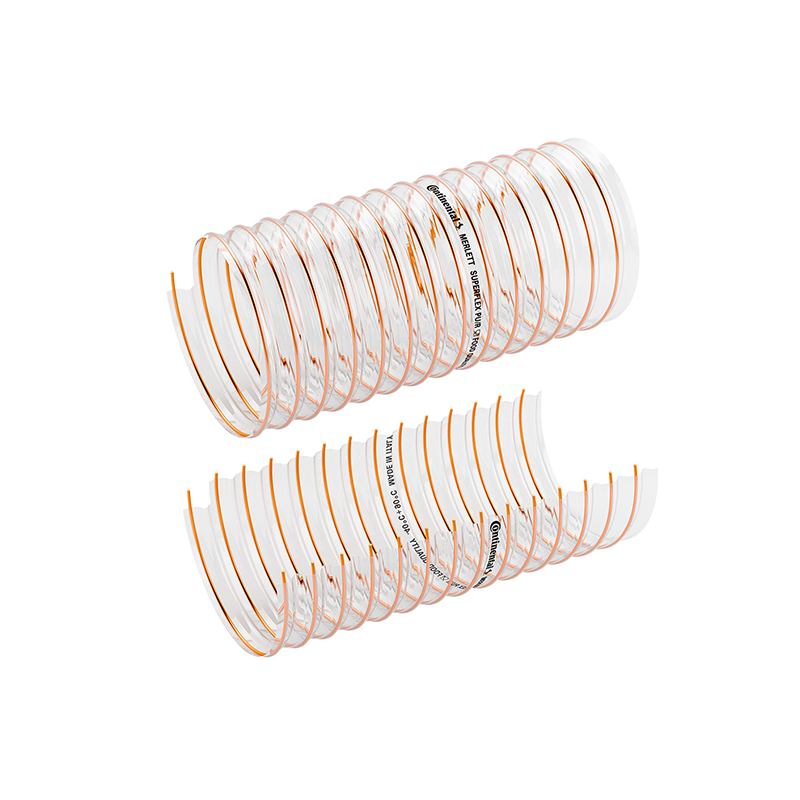

Hose, polyurethane, with spiral, outer d=82, inner d=76, thickness=0,6
MT108916
Hose manufactured in polyurethane with an outer diameter of 82mm and an inner diameter of 76mm. The thickness is 0,6mm. The length is 680mm. Hose with copper-plated steel spiral, for suction and transport of dusts, chips and abrasive material. We offer many different products, so please contat us if you cannot find a product that meet your requirements.
Application
Air
Bending radius min.
75
Unit - meter pr. roll
0
FDA approved
Yes
Components
Hose
Material type
Polyurethane
REACH
Yes
Spiral material
Steel
Type
With spiral
Working pressure
0.8
Diameter inner
76
Length in mm
680
Nominal width
75
Burst pressure
0
Thickness in mm
0.6
Long description
Hose manufactured in polyurethane with an outer diameter of 82mm and an inner diameter of 76mm. The thickness is 0,6mm. The length is 680mm. Hose with copper-plated steel spiral, for suction and transport of dusts, chips and abrasive material. We offer many different products, so please contat us if you cannot find a product that meet your requirements.
