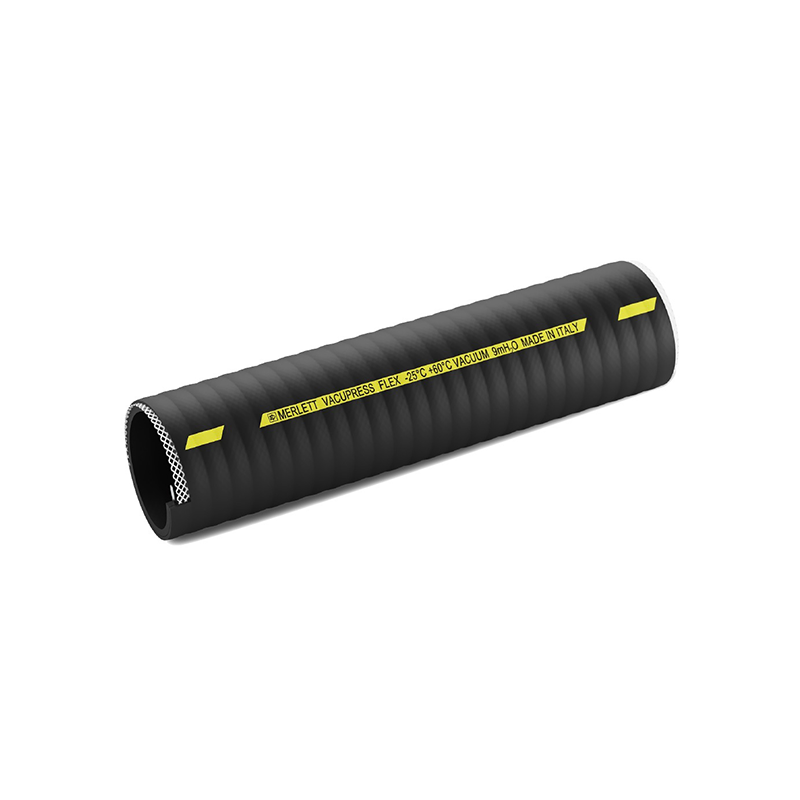

Hose, pvc, reinforced and with spiral, outer d=36, inner d=25, thickness=5,5
MT110026

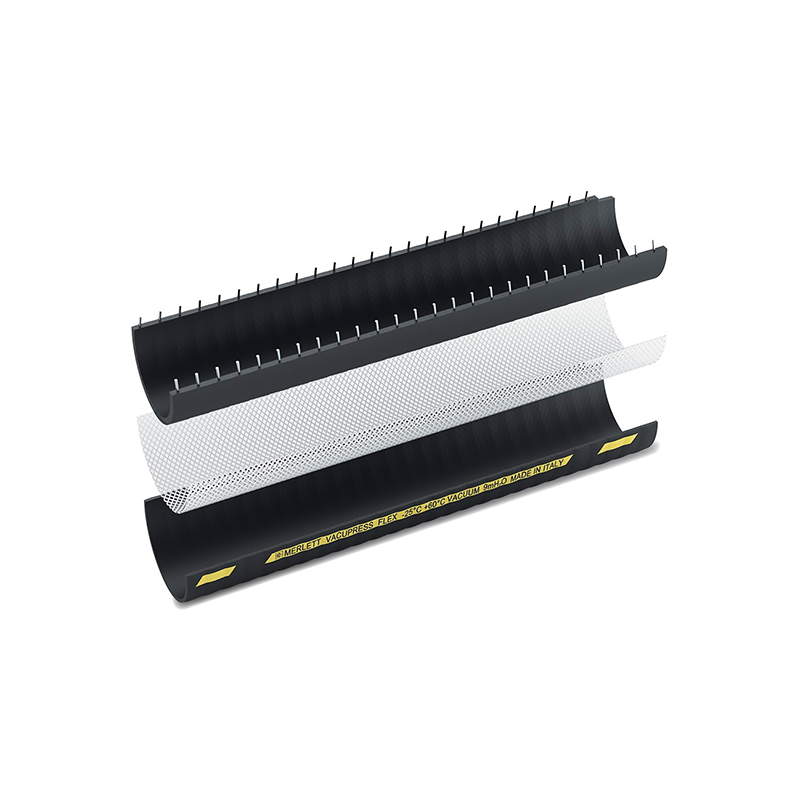

Hose manufactured in pvc with an outer diameter of 36mm and an inner diameter of 25mm. The thickness is 5,5mm. Two-layer soft PVC hose with embedded galvanised steel spiral with polyester yarn reinforcement, for suction and delivery of liquids at working pressure between 12 to 16 Bar. We offer many different products, so please contat us if you cannot find a product that meet your requirements.
Application
Air & fluid
Reinforcement material
Polyester
Bending radius min.
80
Unit - meter pr. roll
60
Colour
Black
Components
Hose
Material type
PVC
REACH
Yes
Spiral material
Steel
Type
Reinforced and with spiral
UV-resistant
Ja
Working pressure
12
Diameter inner
25
Hardness in °
0
Length in mm
0
Nominal width
25
Burst pressure
48
Thickness in mm
5.5
Long description
Hose manufactured in pvc with an outer diameter of 36mm and an inner diameter of 25mm. The thickness is 5,5mm. Two-layer soft PVC hose with embedded galvanised steel spiral with polyester yarn reinforcement, for suction and delivery of liquids at working pressure between 12 to 16 Bar. We offer many different products, so please contat us if you cannot find a product that meet your requirements.
