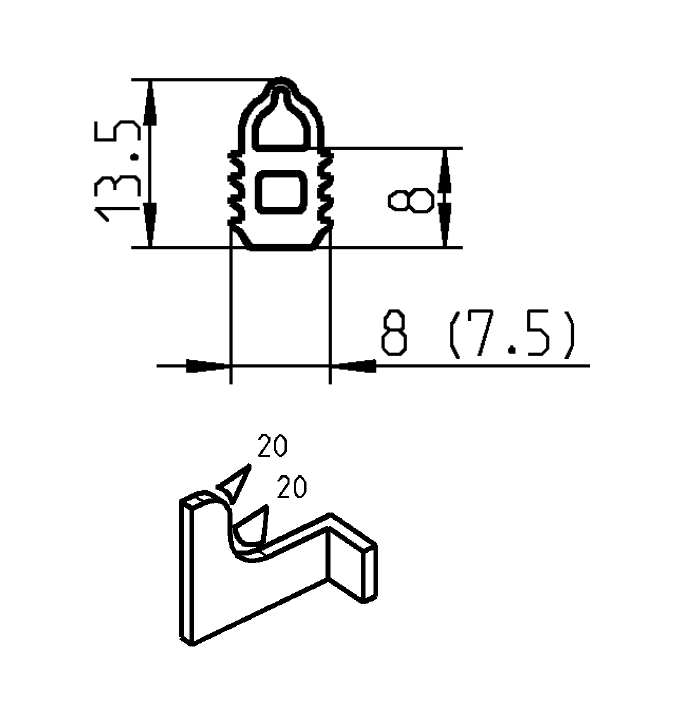

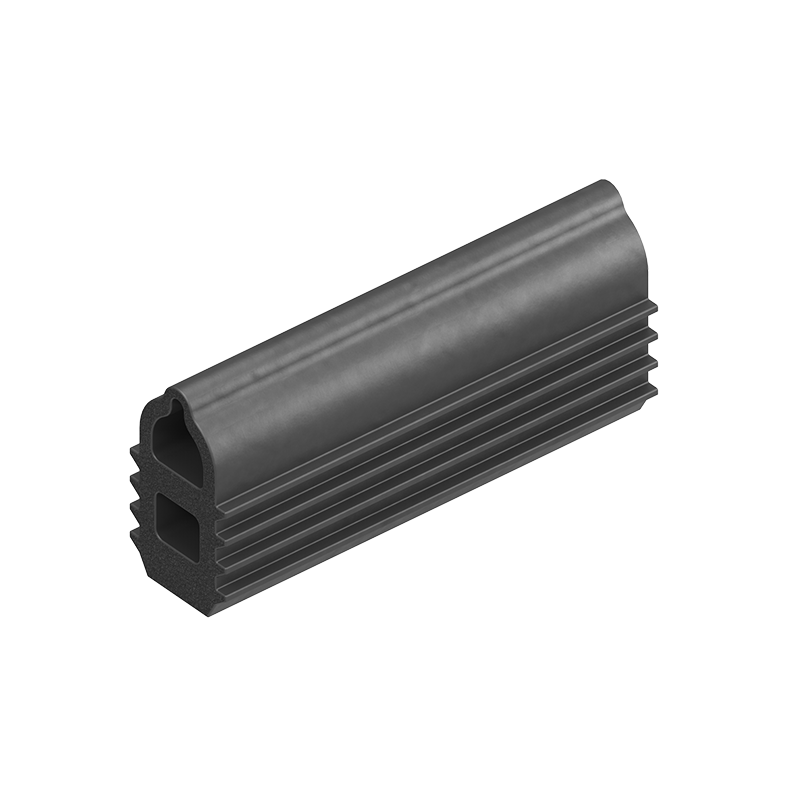

Rubber profile, top bulb, black epdm, clamping channel width=7,5, H=13,5, B=8
MT102100
Rubber profile w/top bulb made in black epdm. The profile has a width of 8 mm, a height of 13,5 mm and is mounted in a clamping channel of 7,5 mm. Special products can be delivered on request.
EMC
No
Colour
Black
Shore standard
Shore A
Adhesive strip
No
Material type
EPDM
Type
With top bulb
Height in mm
13.5
Hardness in °
55
Clamping channel width
7.5
Compression, max.
0
Long description
Rubber profile w/top bulb made in black epdm. The profile has a width of 8 mm, a height of 13,5 mm and is mounted in a clamping channel of 7,5 mm. Special products can be delivered on request.
